Key Features
- Trackman 4 — dual-radar technology trusted on the PGA, DP World, and LPGA Tours for 15+ years
- 27 shot metrics including spin axis, spin loft, attack angle, face angle, club path, dynamic loft, and full 3D ball flight
- Works indoors and outdoors — radar-based, no lighting dependency or ball markers needed
- Includes 1-year Trackman software subscription — virtual golf on 200+ courses, Combine drills, range mode, and full data dashboard
- Trackman OERT Lighting Kit included — ensures consistent indoor ball-tracking performance regardless of ambient light

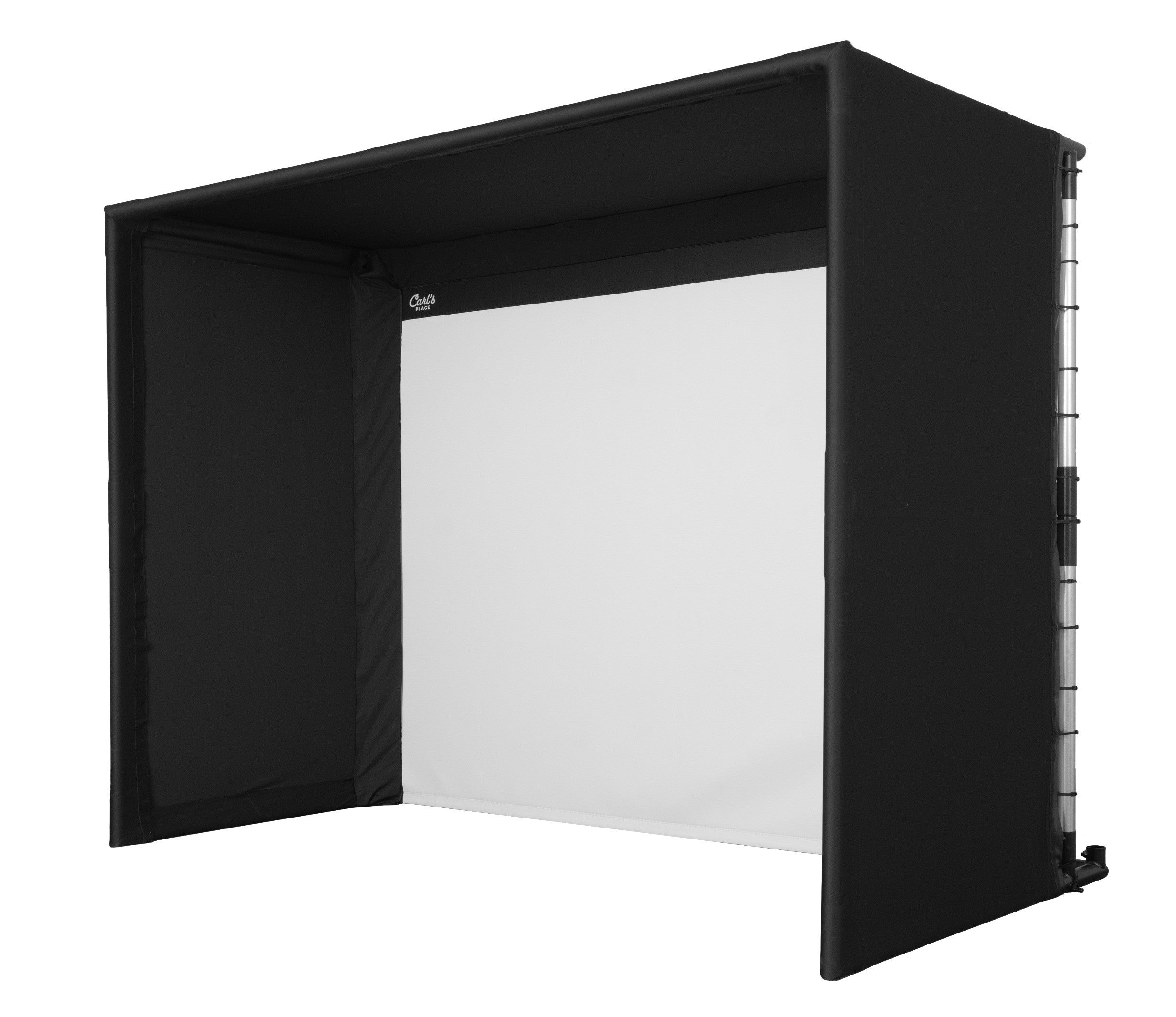

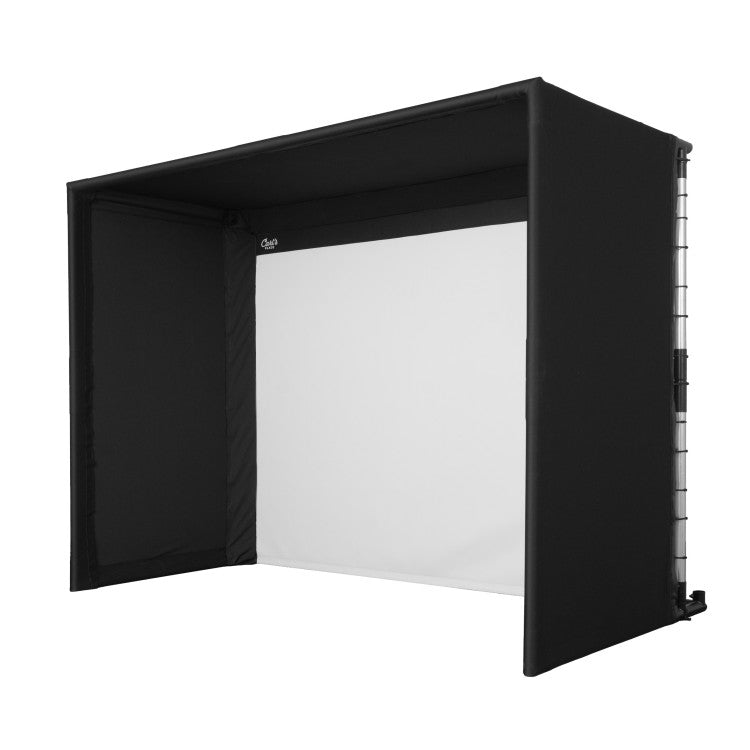

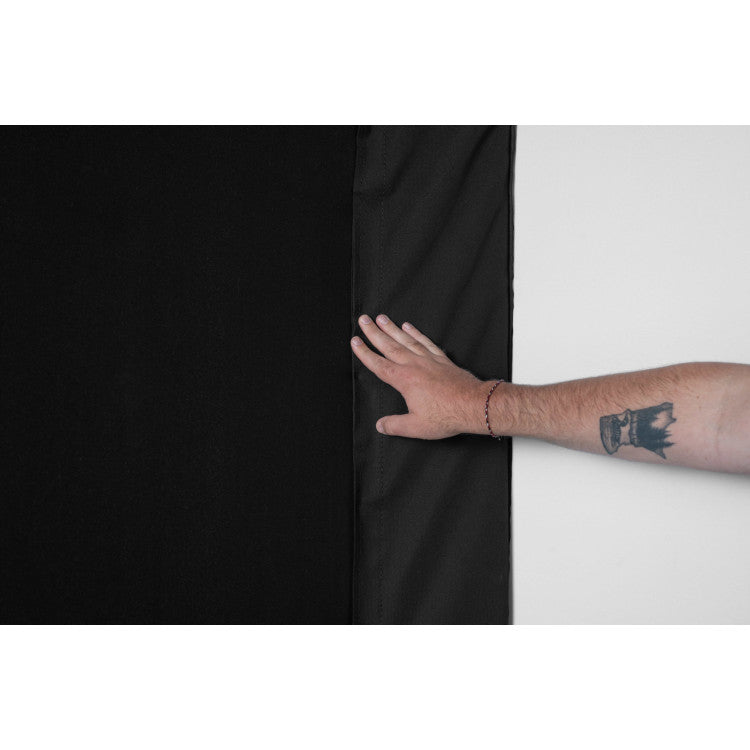

- Carl's Pro Enclosure — 2-inch steel pipe frame, blackstop wraparound fabric, premium impact screen, memory foam surround
- Appotronics MK625B laser projector — high-lumen 4K-ready laser with long-life light source
- Carl's 4x9 HotShot Mat + Extension Strip — fills the gap between Trackman 4 and the mat, eliminating radar gaps
- 6 enclosure sizes available — from 8x10.5 to 10x15.5, with matching pipe kit included
Technical Specifications

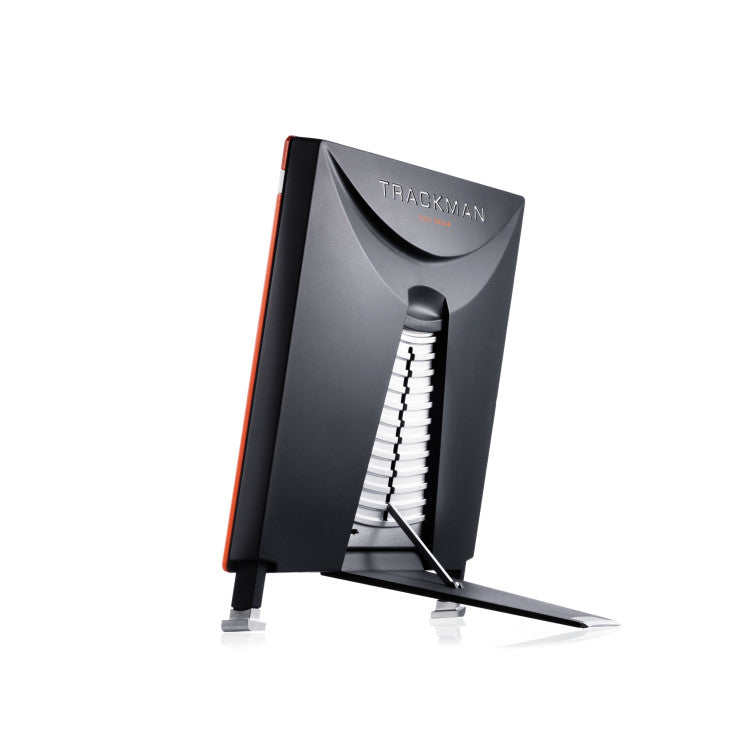

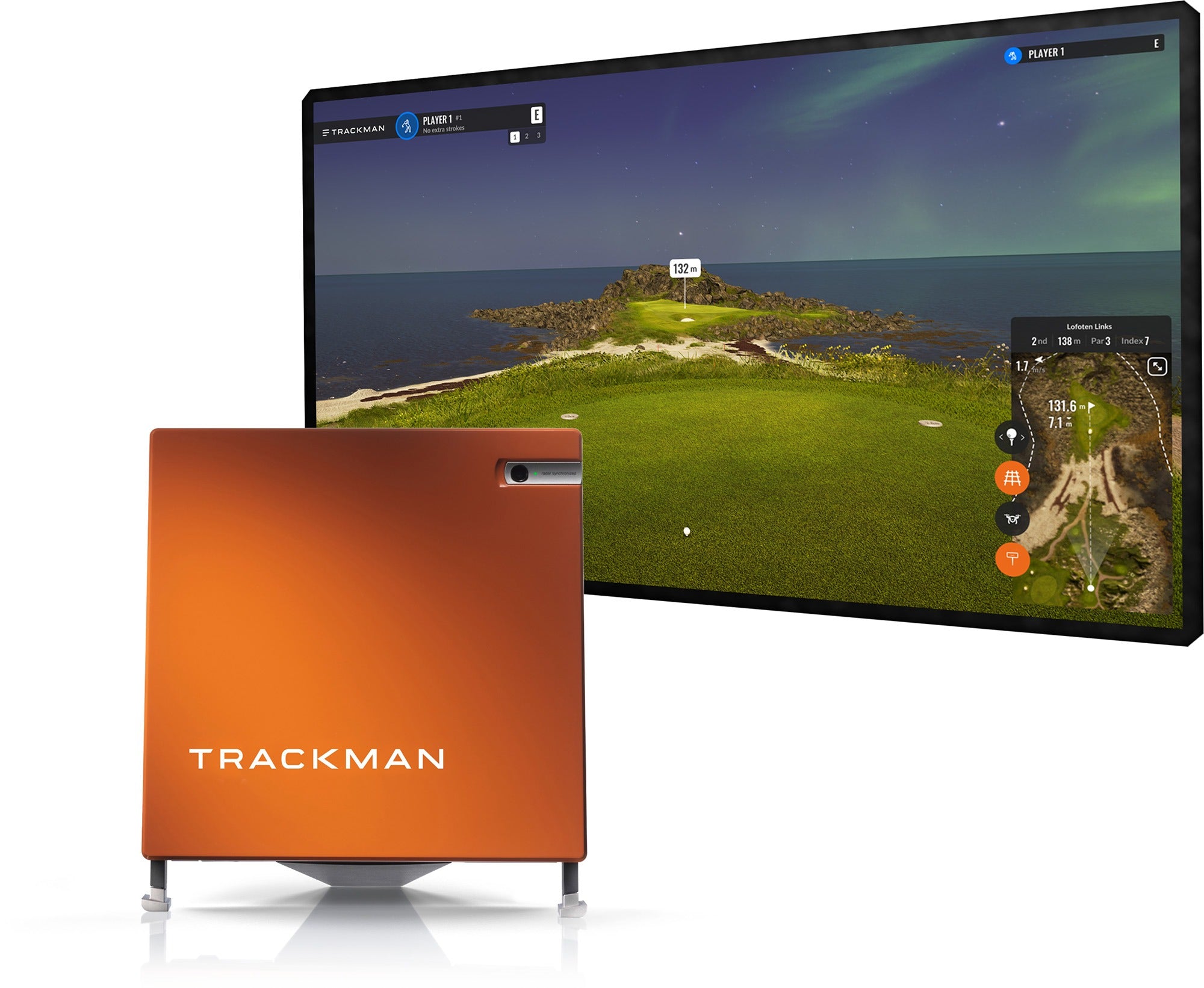

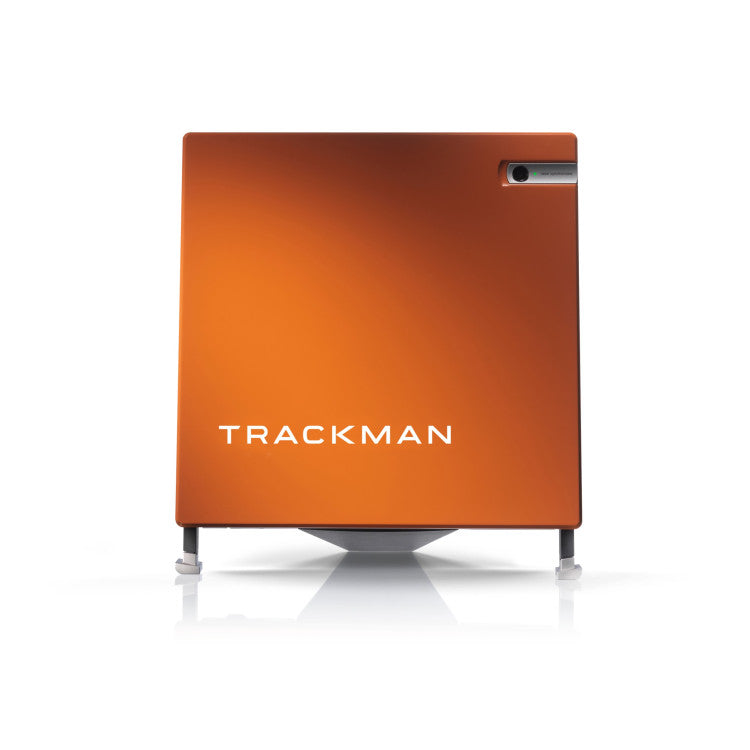

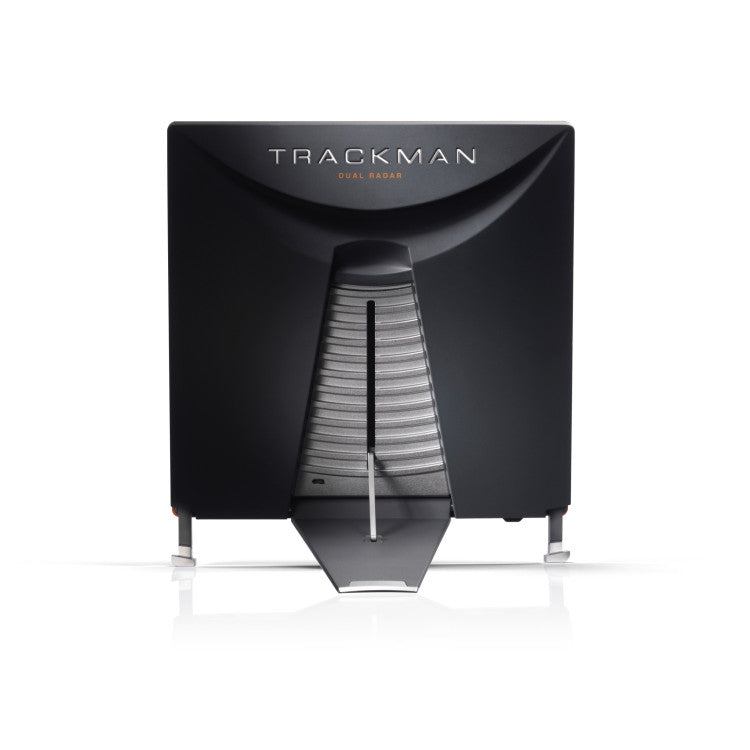

Trackman 4 Launch Monitor
| Technology | Dual Doppler radar |
| Shot Metrics | 27 (full ball + club data) |
| Ball Metrics | Ball speed, launch angle, launch direction, spin rate, spin axis, carry, total, peak height, curve, descent angle |
| Club Metrics | Club speed, attack angle, face angle, club path, dynamic loft, spin loft, low point, closure rate, impact location |
| Indoor / Outdoor | Both (radar-based, no lighting dependency) |
| Connectivity | Wi-Fi + Ethernet |
| Subscription | 1-year Trackman software included |
| PC Requirement | Windows 11, 32GB RAM, i7 3.4GHz+, RTX 4070Ti+ |

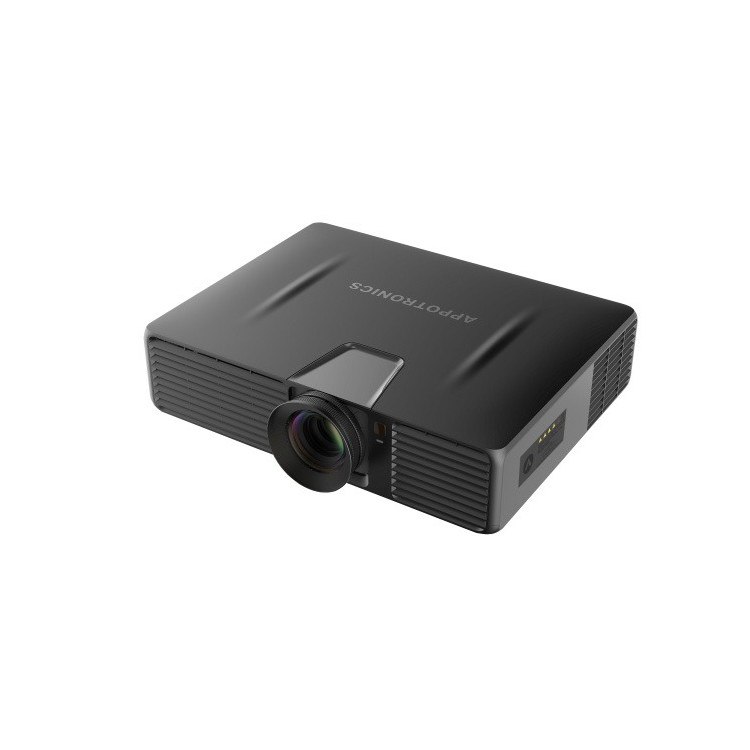

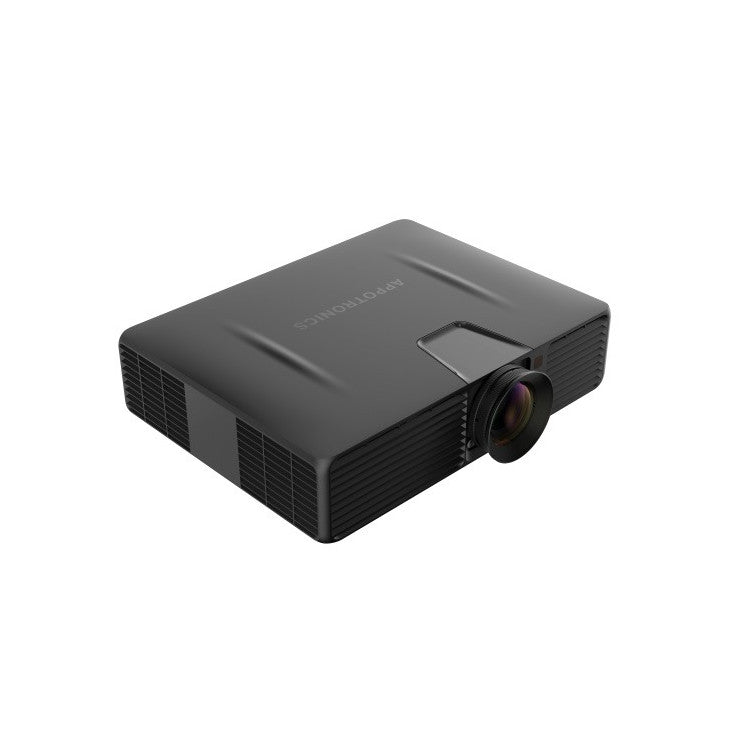

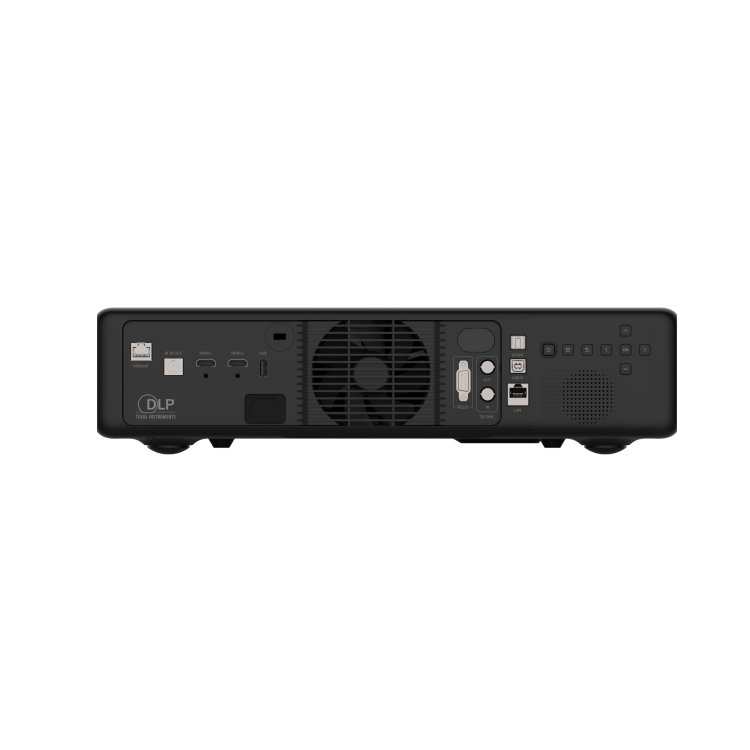

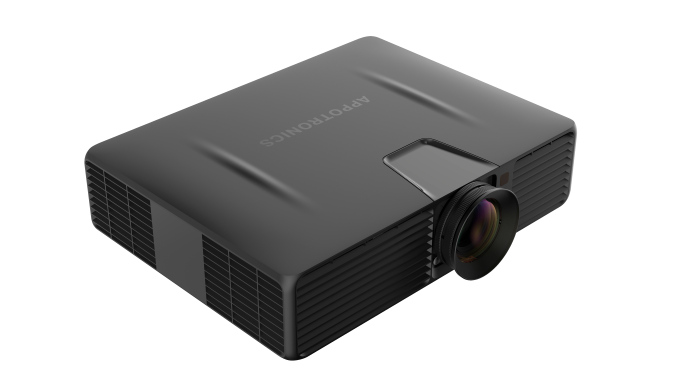

Appotronics MK625B Projector
| Resolution | 4K-ready |
| Light Source | Laser (long-life) |
| Brightness | High-lumen laser |
| Type | Short throw |

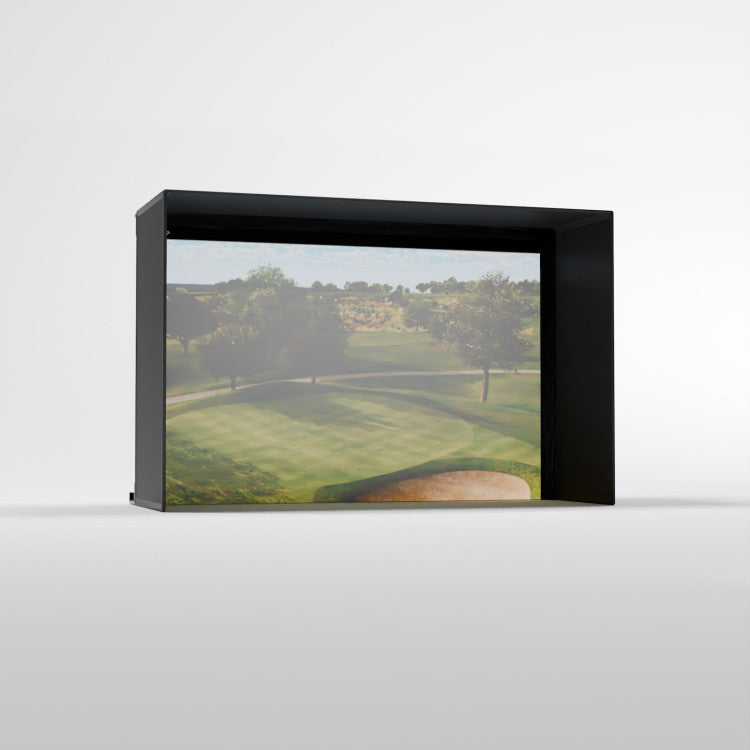

Carl's Pro Enclosure Options
| Size | Width | Height | Depth |
|---|---|---|---|

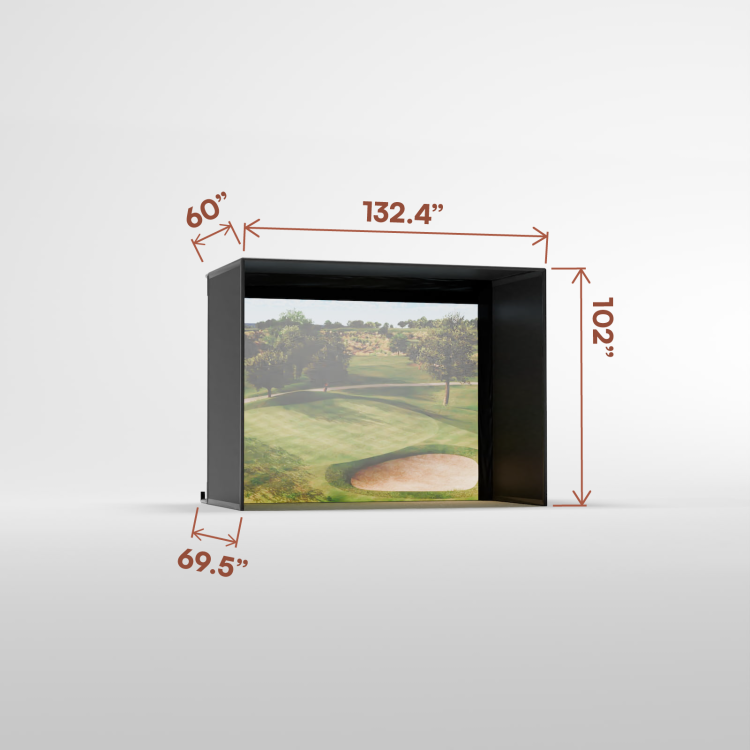

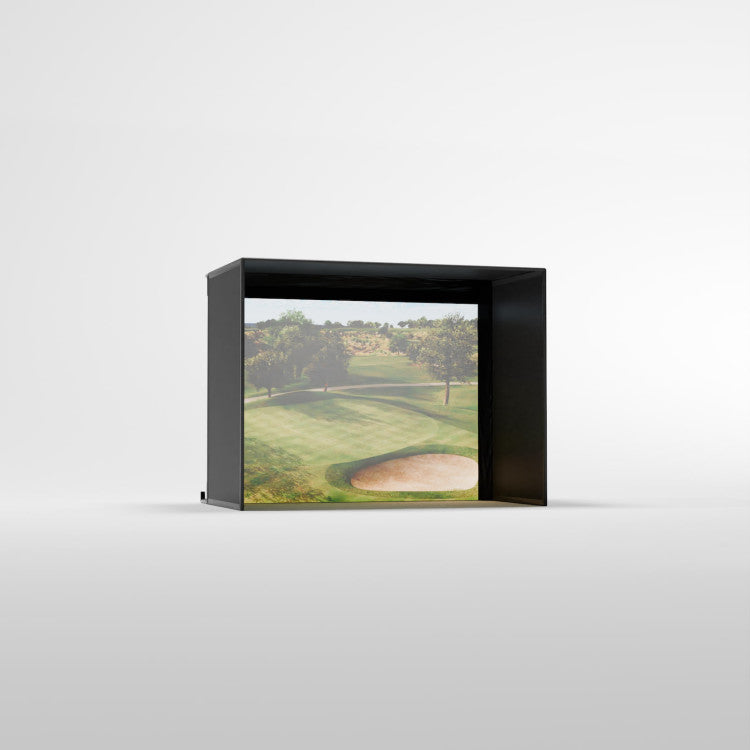

| 8x10.5x5 | 10.5' | 8' | 5' |

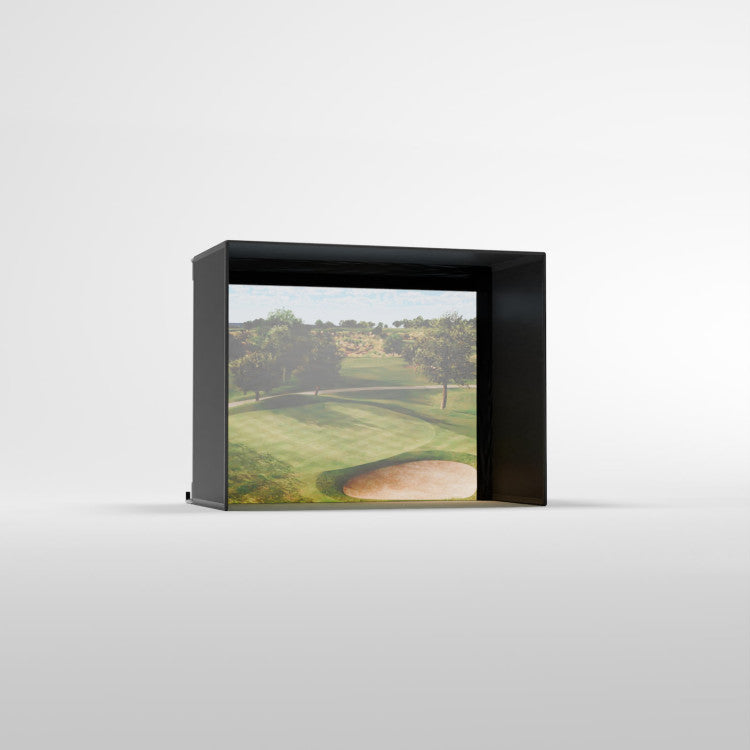

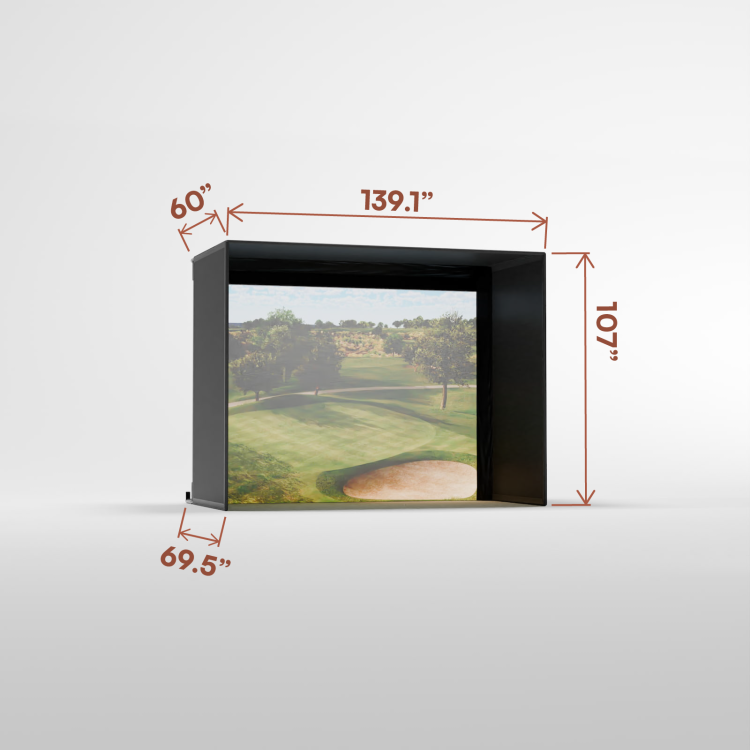

| 8.5x11x5 | 11' | 8.5' | 5' |

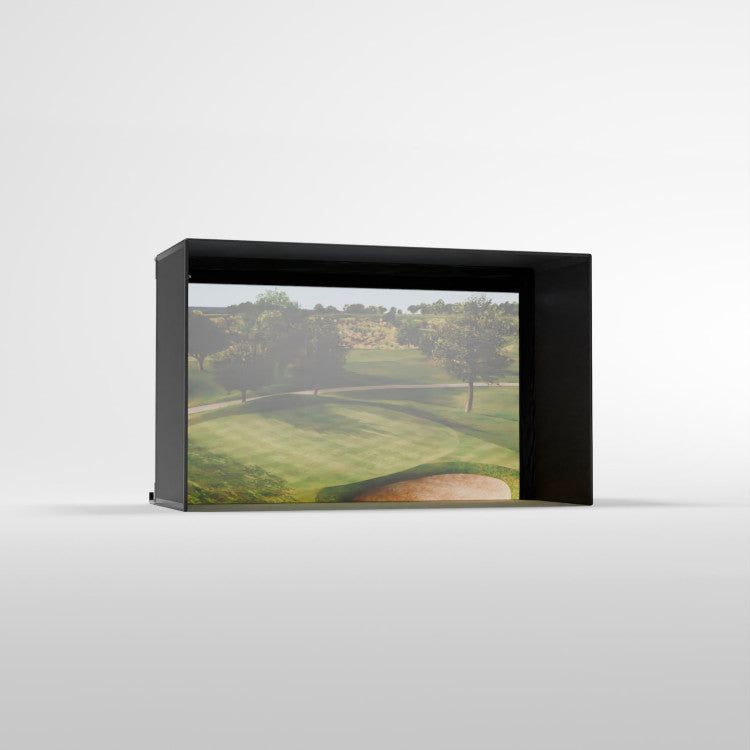

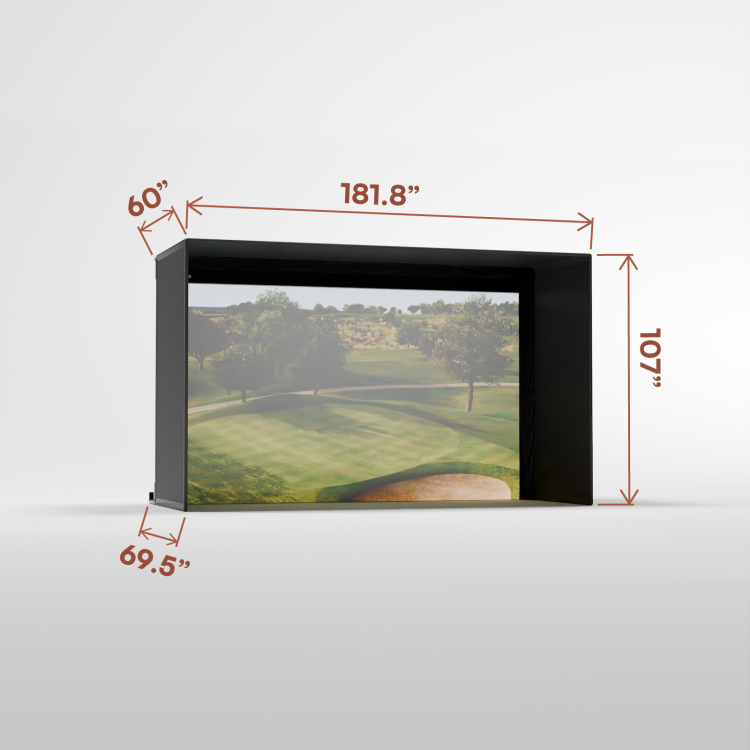

| 8.5x14.5x5 | 14.5' | 8.5' | 5' |

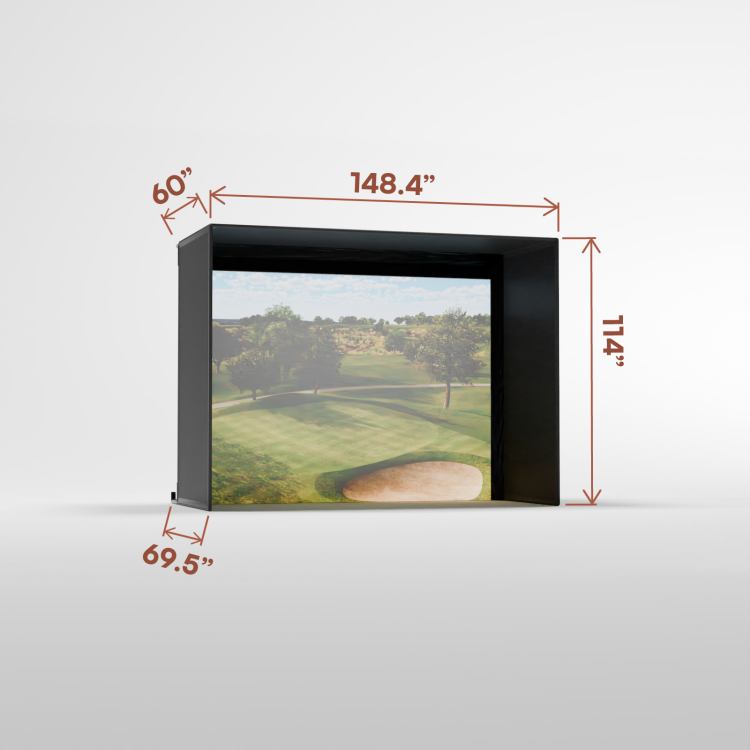

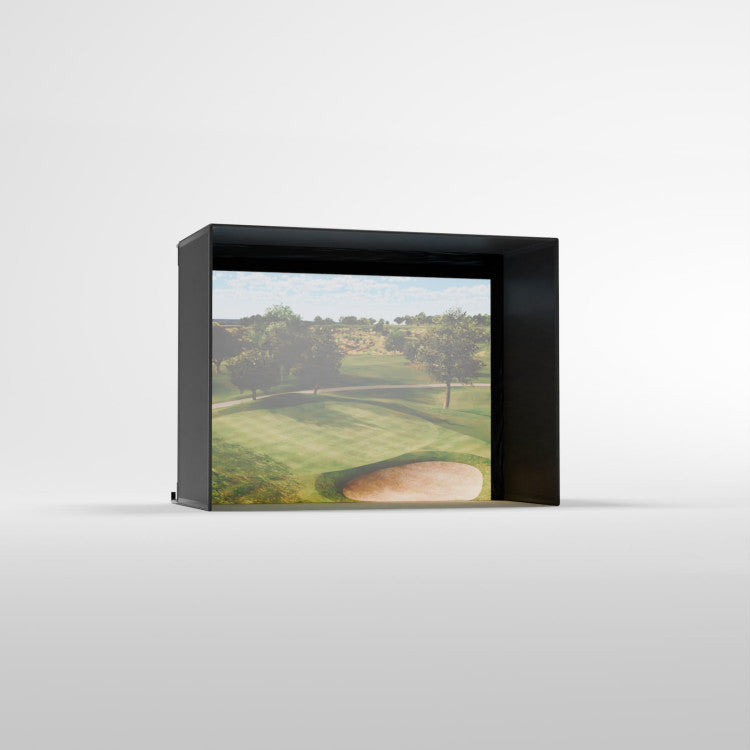

| 9x12x5 | 12' | 9' | 5' |

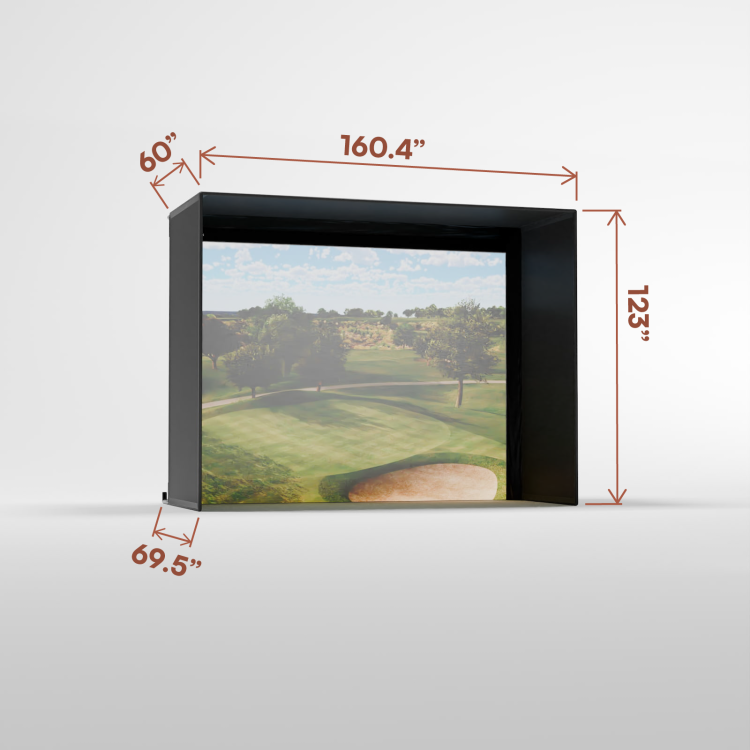

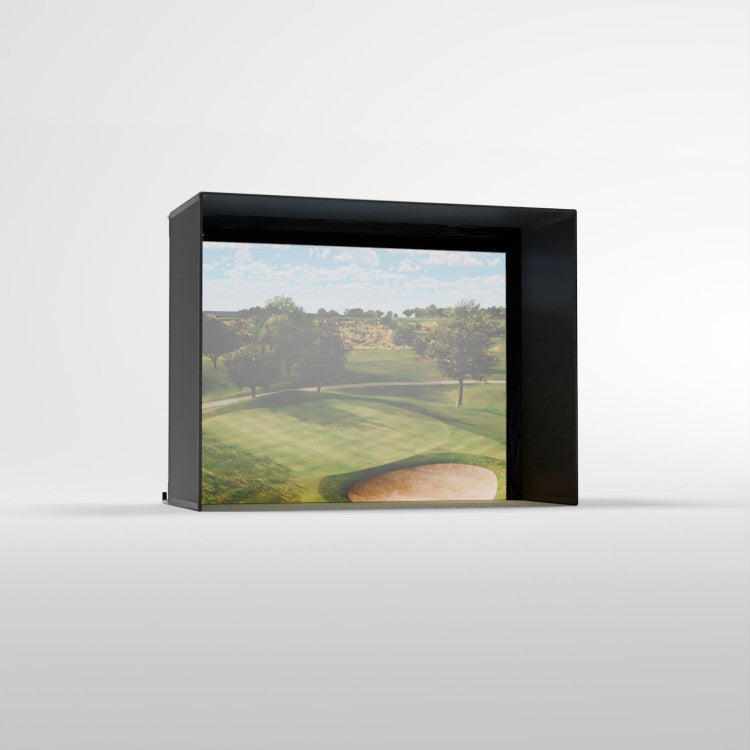

| 10x13x5 | 13' | 10' | 5' |

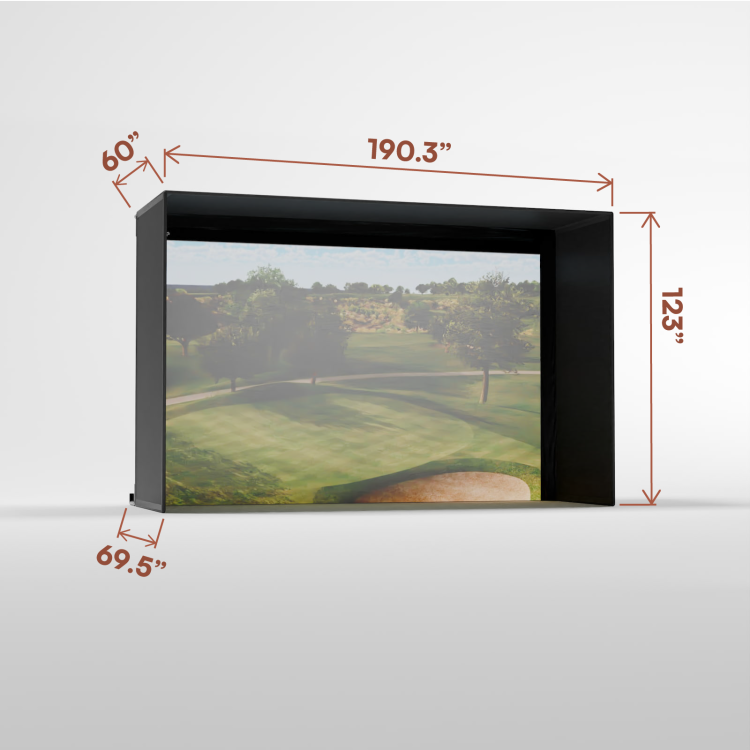

| 10x15.5x5 | 15.5' | 10' | 5' |
In The Box

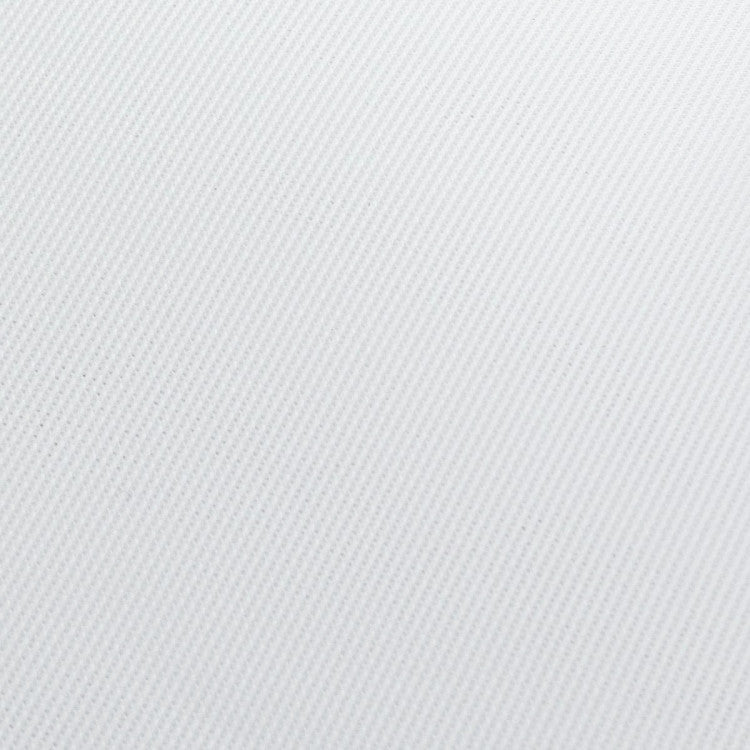

- Carl's Pro Golf Simulator Enclosure Kit — your chosen size, with blackstop fabric, premium impact screen, and memory foam inserts

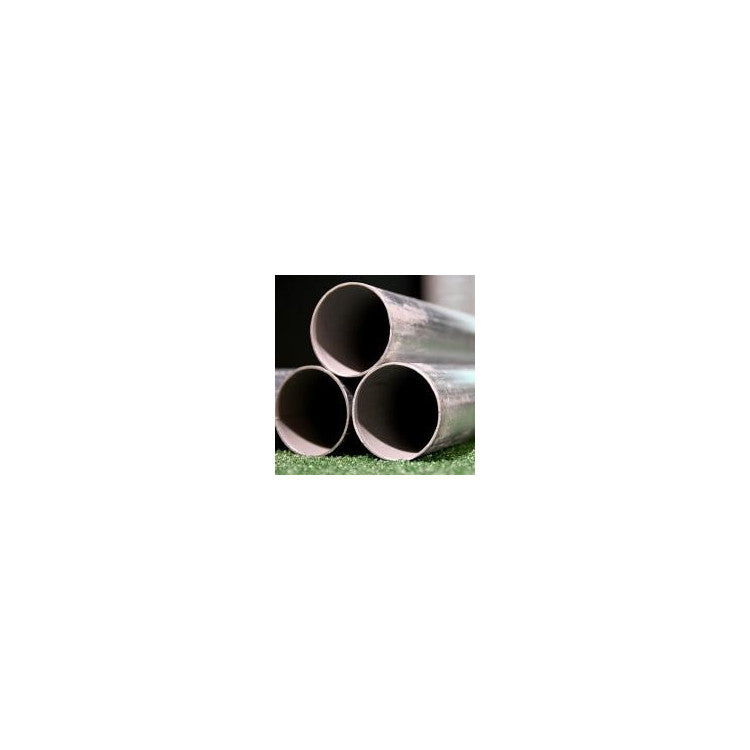

- Pre-cut 2-inch EMT Pipe Framing Kit — steel fittings and elbows, sized to match your enclosure
- Trackman 4 Launch Monitor with soft carry case
- 1-year Trackman Software Subscription — simulation + range mode
- 1-year Trackman Hardware Warranty
- Charger / power supply and metallic dot stickers

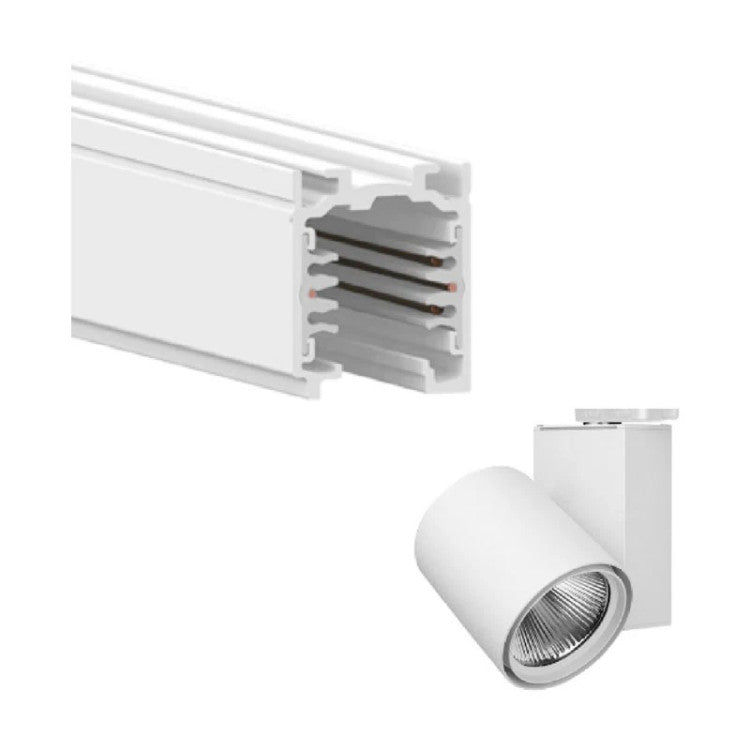

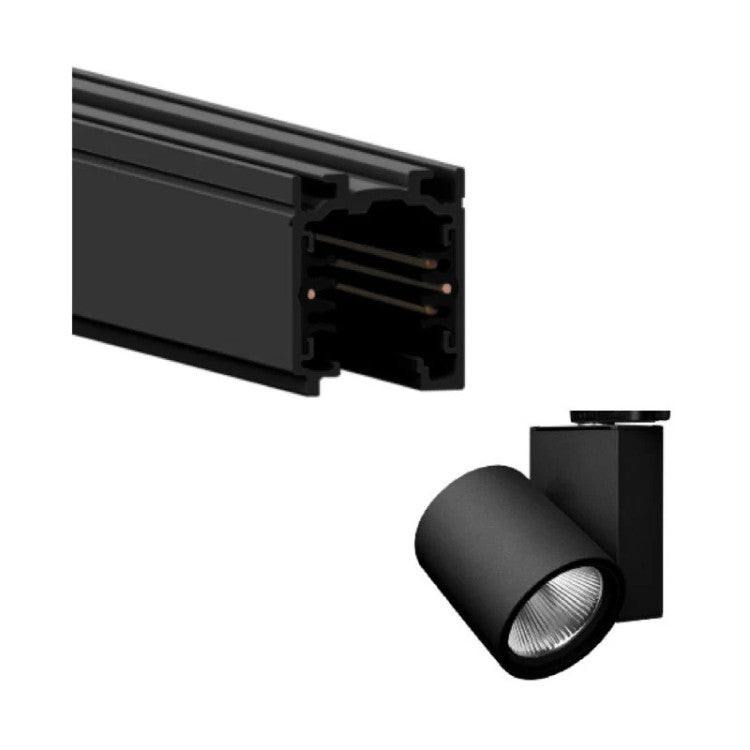

- Trackman OERT Lighting Kit — your chosen colour (White or Black)
- Appotronics MK625B Golf Simulator Projector

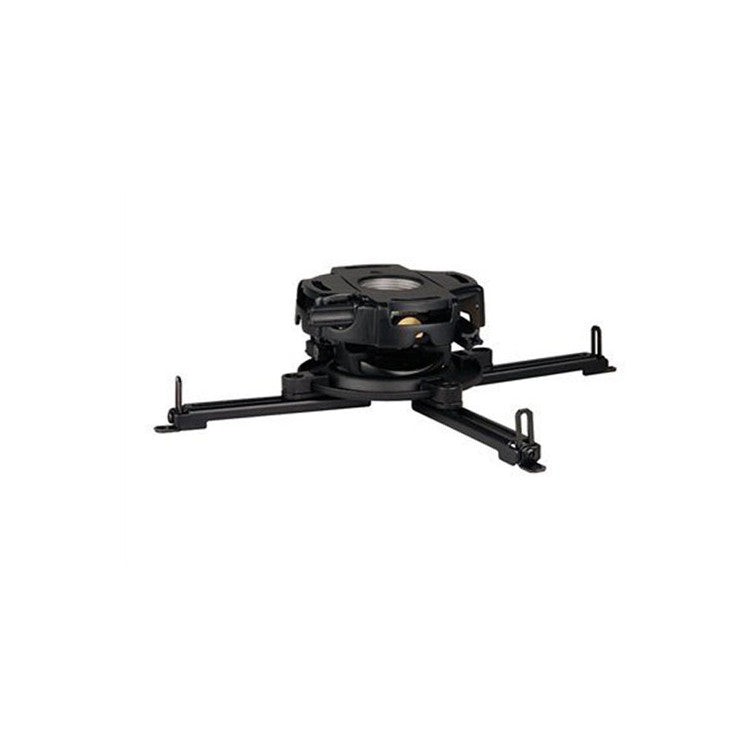

- Ceiling Projector Mount

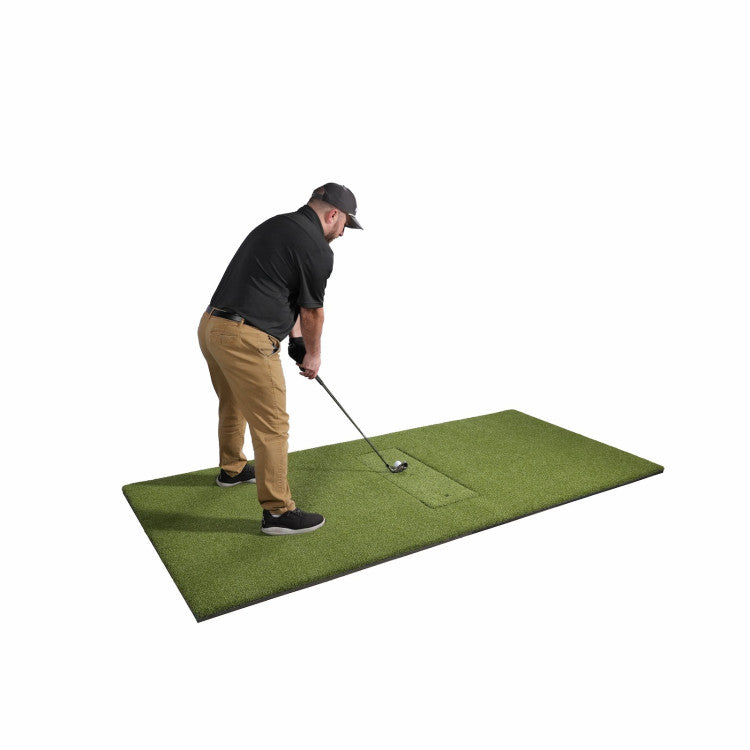

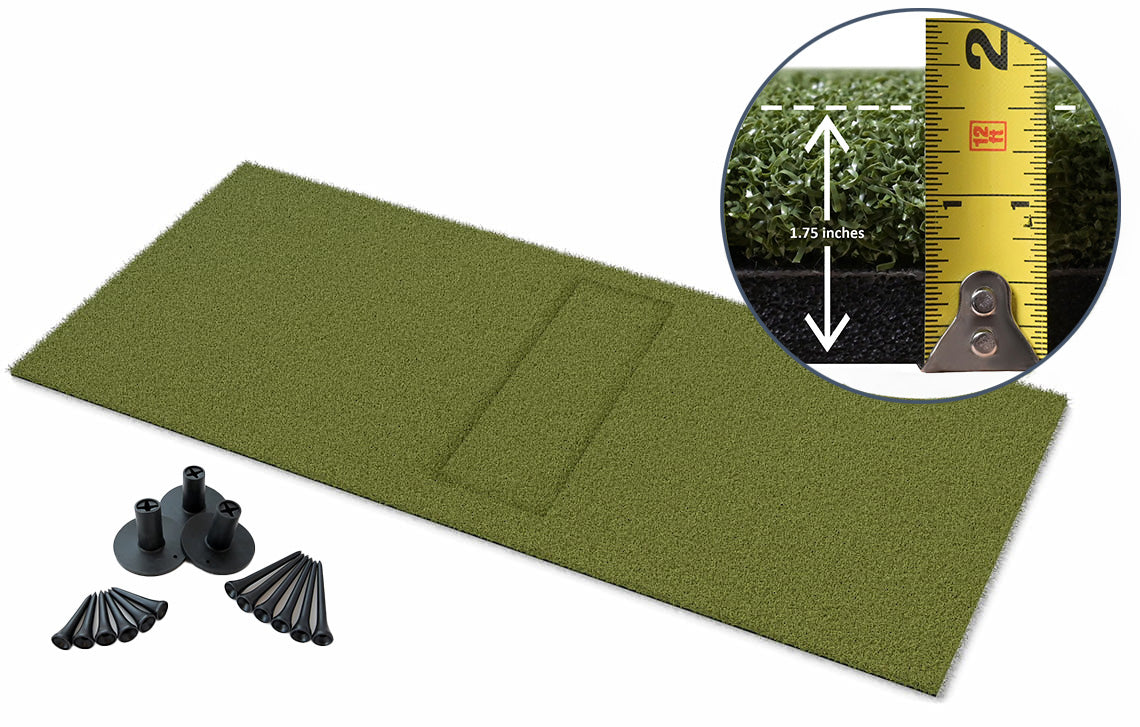

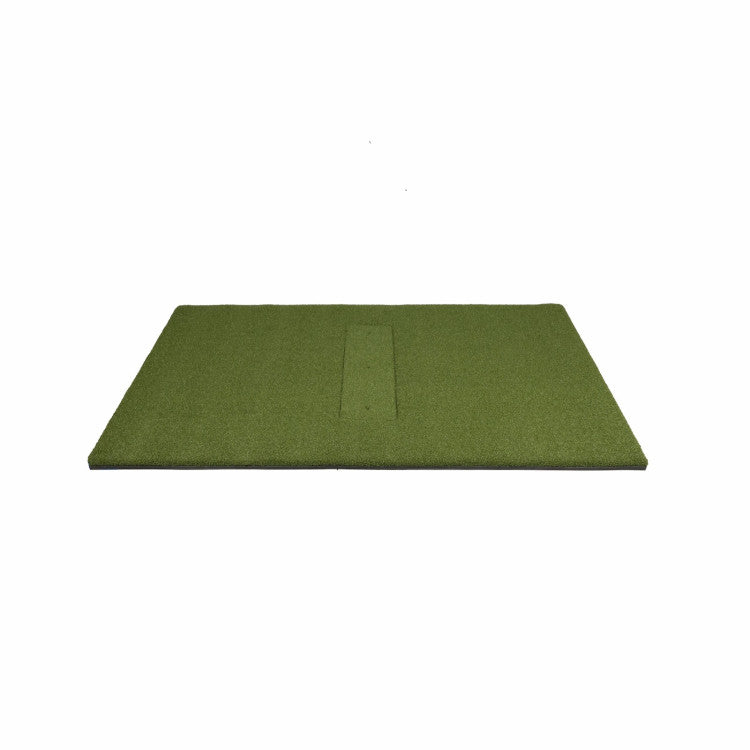

- Carl's 4x9 HotShot™ Hitting Mat
- Standard HotShot Golf Mat Strip (replaceable insert)

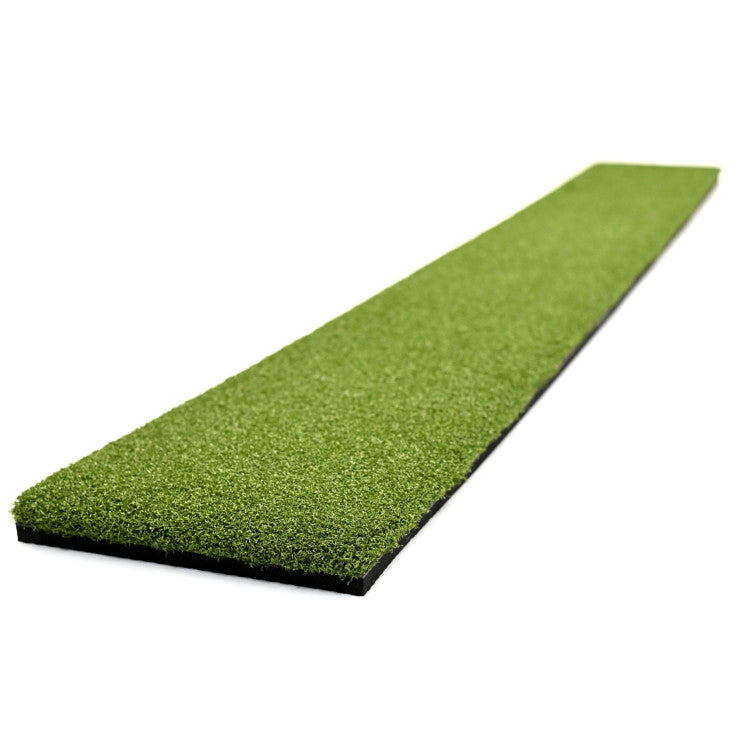

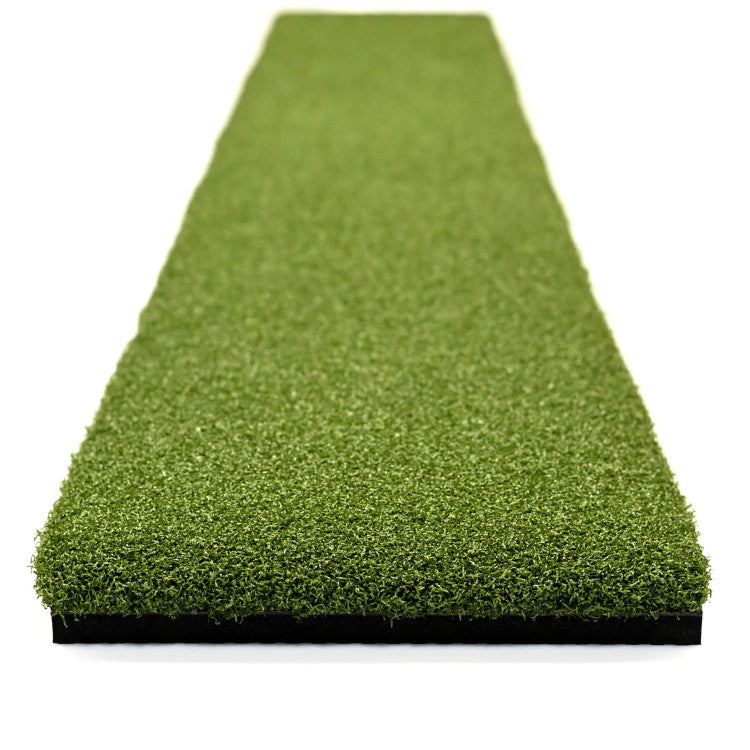

- Golf Mat Extension Strip — bridges the gap between Trackman 4 and the hitting mat
- Carl's HotShot™ Indoor Golf Tees × 40
Optional: SurfThing Performance Max Computer (add-on). A Windows 11 PC with RTX 4070Ti or better is required to run Trackman software.
Compatible Software
Trackman 4 connects to all major simulator platforms via Wi-Fi or Ethernet.
Trackman Simulation (included)E6 ConnectGSProTGC 2019WGT GolfCreative Golf 3D
Trackman Simulation — included in the subscription
The included 1-year Trackman software subscription gives access to virtual rounds on 200+ world-famous courses, Trackman Combine (standardised skills testing), Range mode for data-only practice, and full shot history and analytics. A Windows PC meeting the hardware requirements above is needed to run the software.
Is This Right For You?
The Professional Coach
Needs tour-accurate data for club fitting or lesson delivery. Trackman 4 is the industry standard — your students will recognise and trust it.

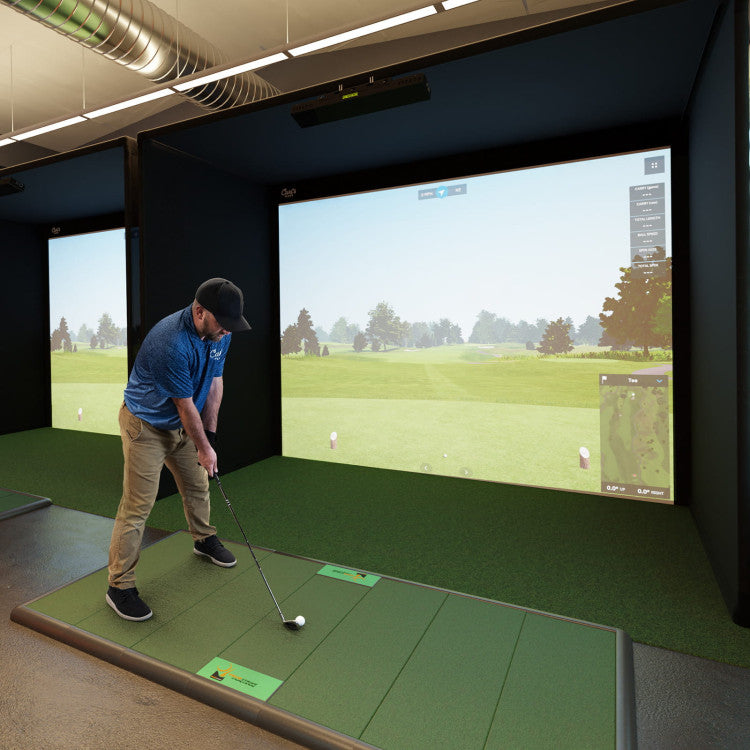

Perfect fit ✓The Commercial Bay Owner
Opening a simulator studio or golf lounge. Carl's Pro Enclosure is built for commercial use — heavy-duty frame, professional finish, high volume ready.

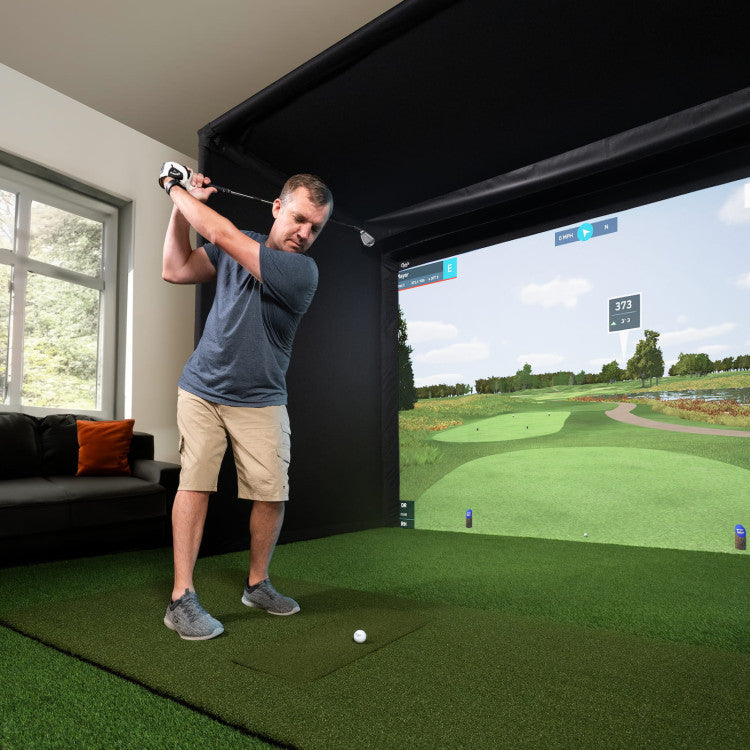

Perfect fit ✓The Serious Home Golfer
Wants the absolute best data available at home, plays to a low handicap, and wants to practice like the pros do.
Great fit ✓The Casual Golfer
Just wants to enjoy a game at home without diving deep into data. A launch monitor like the Garmin R50 bundle would be a better value fit.
Not ideal ✗Room Under 9ft Ceiling
The smallest Pro Enclosure (8x10.5) needs a minimum 9ft ceiling height. Trackman also requires 6ft+ behind the hitting area.

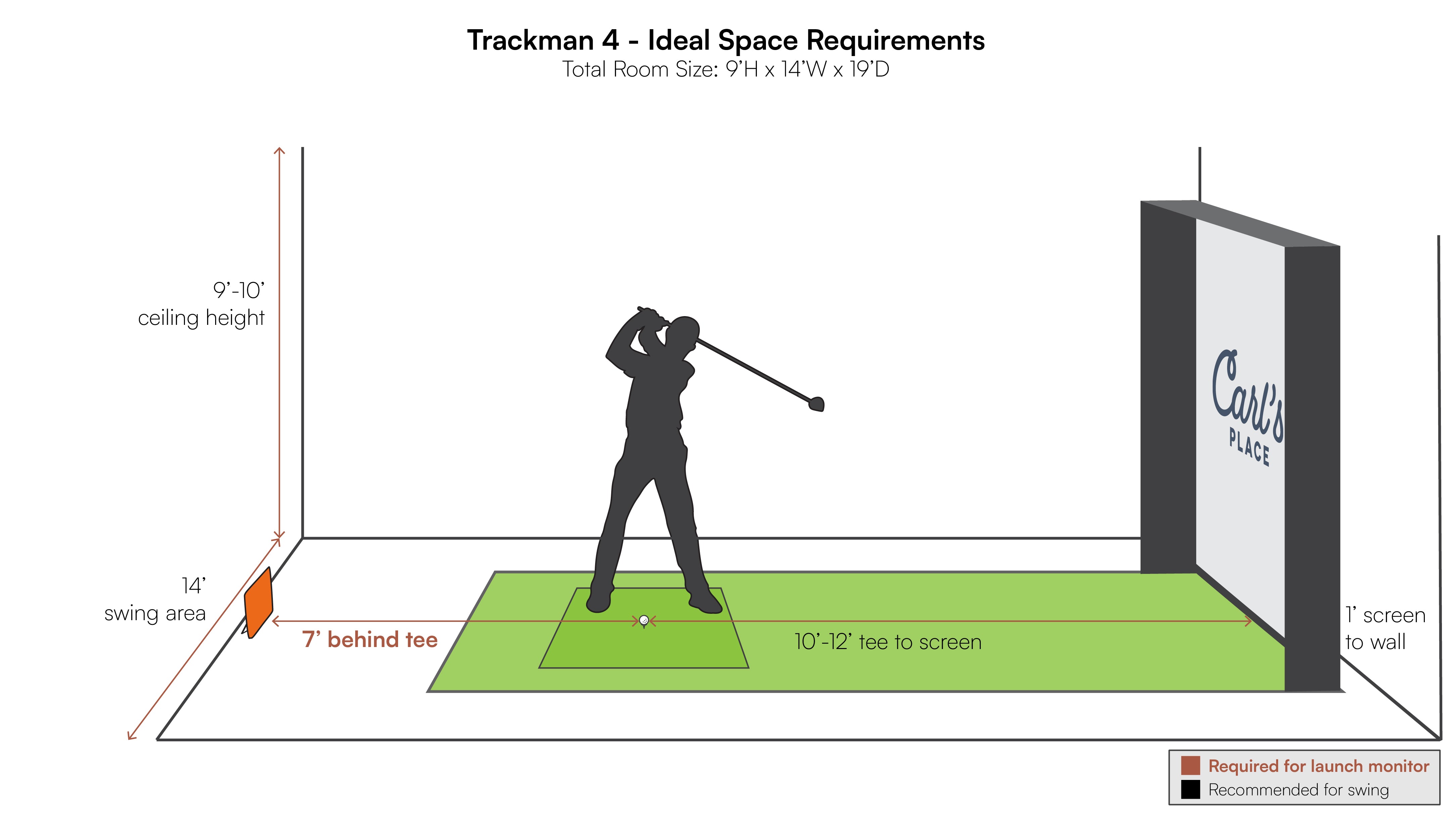

Not ideal ✗Room Size Guide
6ft+
Behind hitter
9ft+
Ceiling height
10ft+
Screen to tee
| Measurement | Minimum | Optimal |
|---|---|---|
| Behind hitting area | 6ft | 7ft |
| Ceiling height | 9ft | 11ft |
| Screen to tee | 10ft | 12ft |
💡 Trackman 4 sits behind the golfer (off to the side or directly behind). Ensure 6ft+ clearance behind the hitting position. Always measure ceiling to the lowest point including beams and lights.
What You'll Also Need
This bundle is complete — the only things not included:
Windows 11 PC (required)
Min: Intel i7 3.4GHz, 32GB RAM, Nvidia RTX 4070Ti, 1TB SSD, Wi-Fi + Ethernet. Needed to run Trackman software.
SurfThing Performance Max (add-on)
Intel Ultra 7 + RTX 5080 — meets all Trackman requirements. Available as an optional add-on. Contact us to add it.
Golf Balls
Standard balls — no special requirements. Trackman 4 is radar-based so no dot stickers needed (included anyway).
Simulator Software Licence
Trackman simulation is included for year 1. E6 Connect, GSPro, TGC 2019, and WGT require separate annual licences after that.
