GSA Golf VisTrak SCX Pro Golf Launch Monitor — Stereo Camera, 3000fps

GSA Golf VisTrak SCX Pro Golf Launch Monitor — Stereo Camera, 3000fps

Name: GSA Golf VisTrak SCX Pro Golf Launch Monitor — Stereo Camera, 3000fps
Brand: GSA Golf
SKU: GSA-GSA-VISTRAK-SCX-01
Price: 6499.00 USD
Availability: InStock

$6,499.00

/

3000fps stereo camera system — overhead ceiling-mount

Works with GSA Golf software suite

Competes with units costing $6,500–$19,000

0% Finance available — on orders over $1,000 — learn more

📞 Have a question? Call +1 (424) 600-9901

Connecting…

30 Day
Returns

Expert
Installation

24/7
Support

The GSA Golf VisTrak SCX Pro is a ceiling-mounted stereo camera golf launch monitor running at 3000fps - one of the most affordable overhead tracking.

IR Tracking for Professional Environments

The Vistrak SCX IR Pro uses infrared tracking to capture detailed ball and club data in permanent commercial simulator installations. Built for environments where accuracy and low-maintenance operation are required daily.

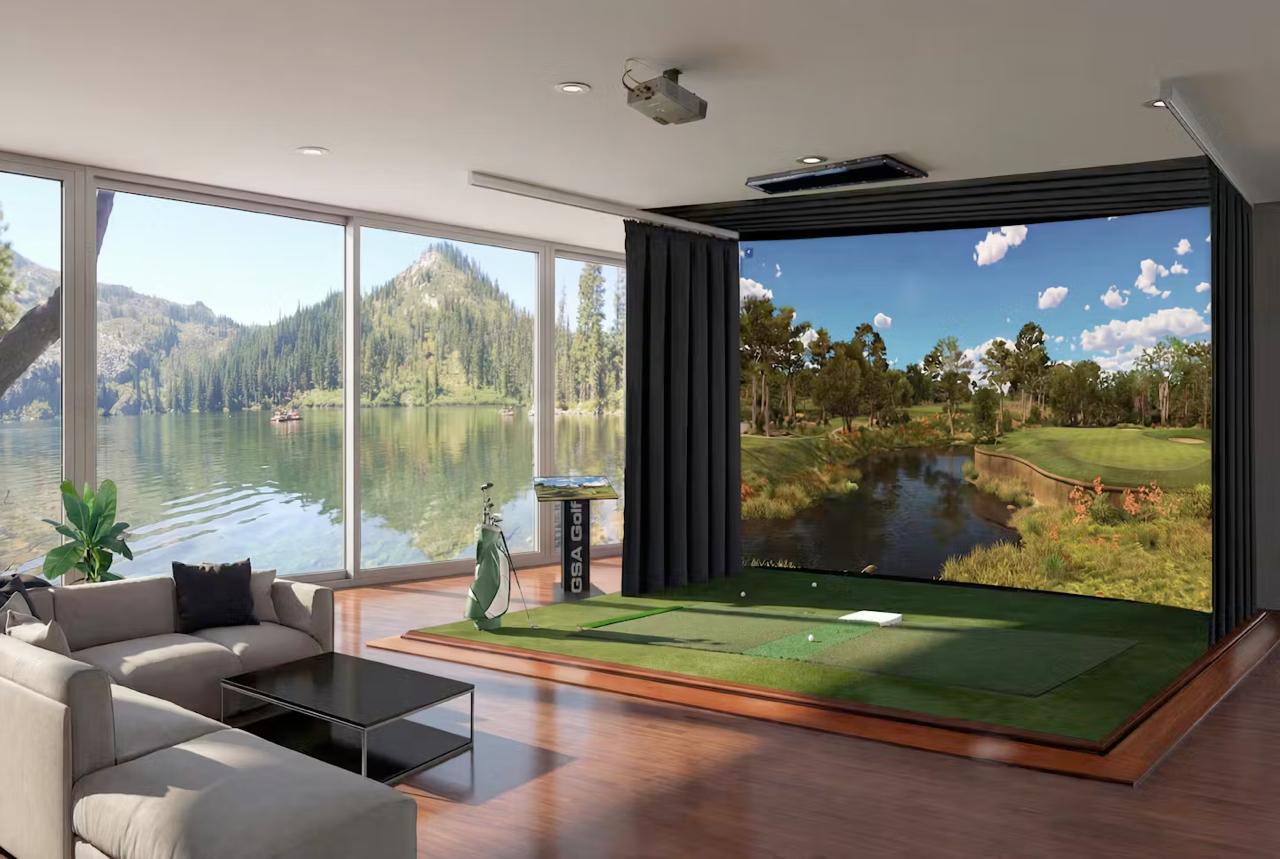

Golf simulator room with GSA Golf SCX Pro

Built for the Premium Simulator Bay

The SCX Pro is designed to sit at the heart of a high-end home or commercial golf simulator setup - ceiling-mounted, out of the way, and always accurate.

Ceiling-mounted above the hitting mat - never in the way of your swing
Works for both left and right-handed players with no repositioning
Compatible with E6, TGC, GsPro simulation software
Includes one free 18-hole course software to get started immediately
Post-shot video playback after every shot - see exactly what happened

Precision Engineering Inside

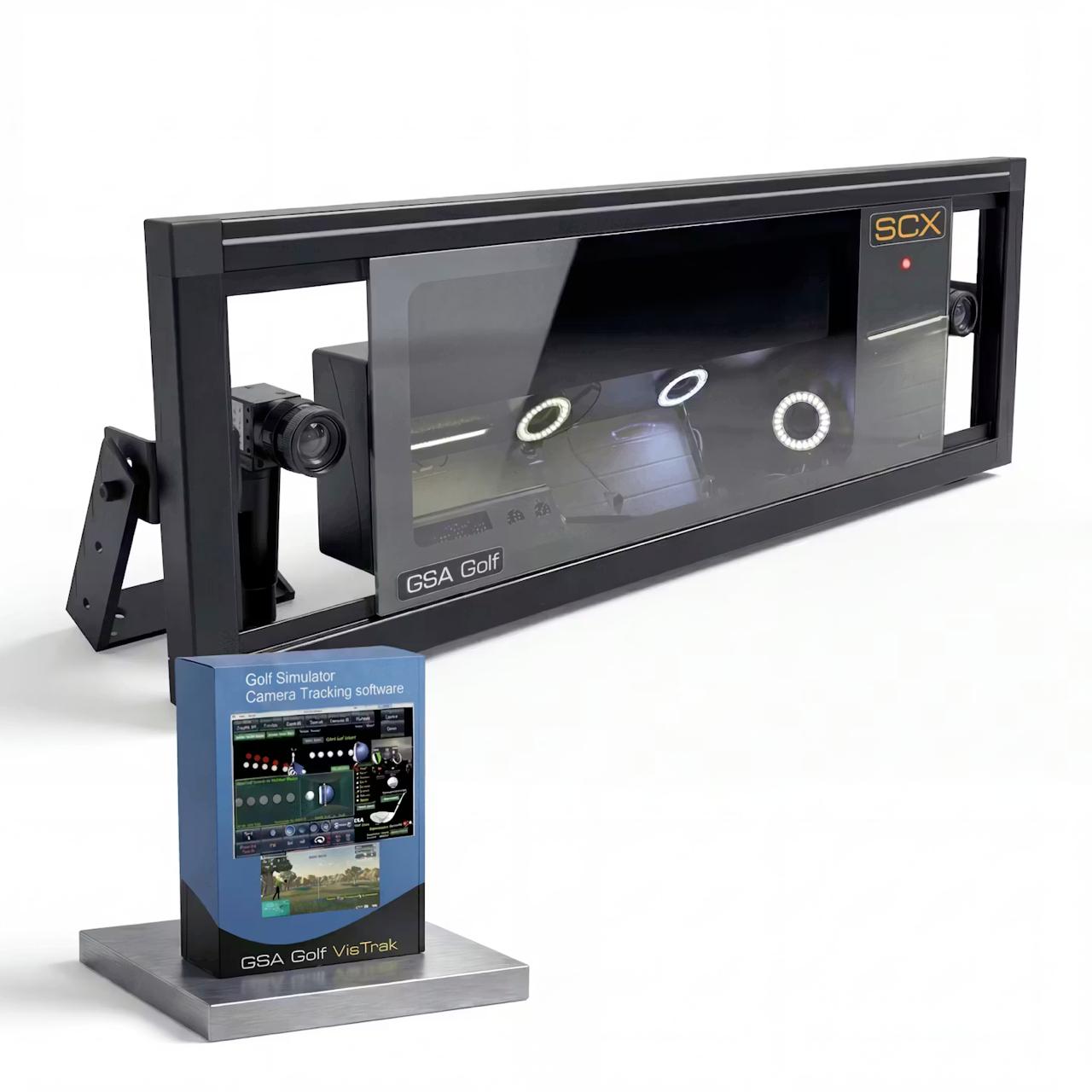

The SCX IR Pro is built around a robust dual-camera stereo system with 48 hi-powered IR LEDs - serious hardware for serious data.

Dual stereo 1500 fps cameras with laser precision calibration
48 hi-powered IR LED narrow beam lighting for reliable shot detection
Green light bar indicator - confirms ball is detected on the mat
Ball placement laser included (GPIO controlled)
Sturdy metal casing with ceiling mounting brackets included

Full Ball & Club Data - Every Shot

The SCX Pro captures a complete data set on every shot - ball and club - so you get a full picture of your performance, not just part of it.

Ball: speed, VLA, HLA, back spin, side spin and spin axis
Club: face angle, path and speed
3000 fps stereo camera system with hi-powered IR narrow beam LEDs
Dimensions: 3.5" high × 10" wide × 30" long
No subscription fees - pay once, use forever

All Data Is User Verifiable

Unlike most other systems - especially radar-based systems where essentially zero data is user verifiable - all data with the VisTrak hi-speed camera system is fully verifiable by the user.

You can see with your own eyes in the post-shot video playback: the real vertical launch angle, horizontal ball path, club face angle at impact, club path, and even ball spin. Every data point has a video to back it up.

See It In Action

What It Tracks

Ball Data

Ball speed, vertical launch angle (VLA), horizontal launch angle (HLA)
Back spin and side spin - measured, any ball can be used

Club Data

Club speed, club path and club face angle at impact

Hardware

Dual stereo hi-speed cameras at 3000 fps with laser precision calibration
48 hi-powered IR narrow beam LEDs in metal case
Green light bar indicator - confirms ball is detected and system is ready
Ball placement laser (GPIO controlled)
Left and right-handed play supported
Lightweight - 4 lbs. Ceiling-mounted unit.
Hand-built, tested and calibrated before shipping

Specifications

System Type	Ceiling-mounted stereo camera
Frame Rate	3000 fps
LEDs	48 hi-powered IR narrow beam
Dimensions	3.5" H x 10" W x 30" L
Weight	4 lbs
Ball Requirement	Any standard golf ball
Subscription	None - pay once, use forever

PC Requirements

Processor	Intel i5 or above (no AMD, no laptops)
RAM	8GB minimum
GPU	Nvidia 1070 or equivalent
OS	Windows 10 or 11
USB	USB 3.1+ ports (one per camera, direct - no hubs)
Storage	25GB hard drive space
Internet	Required for E6, TGC, GSPro

In The Box

VisTrak SCX IR Pro camera unit
25ft powered USB3 extension cables
Power strip with on/off switch + 25ft power extension cable
Sticky-back white glossy photo paper (optional club markings)
GSA Golf Quick Guide Owners Manual
GSA Golf Hi-Speed Camera Tracking Software with post-shot video playback
One free 18-hole course game software

PC, monitor, projector, enclosure and hitting mat sold separately.

Compatible Software

Compatible with all major golf simulation software. No proprietary balls required.

GSProE6 ConnectThe Golf Club (TGC)Creative Golf 3D
