Key Features
- Overhead mounting — installs 9–10 ft above hitting surface, completely out of your swing path

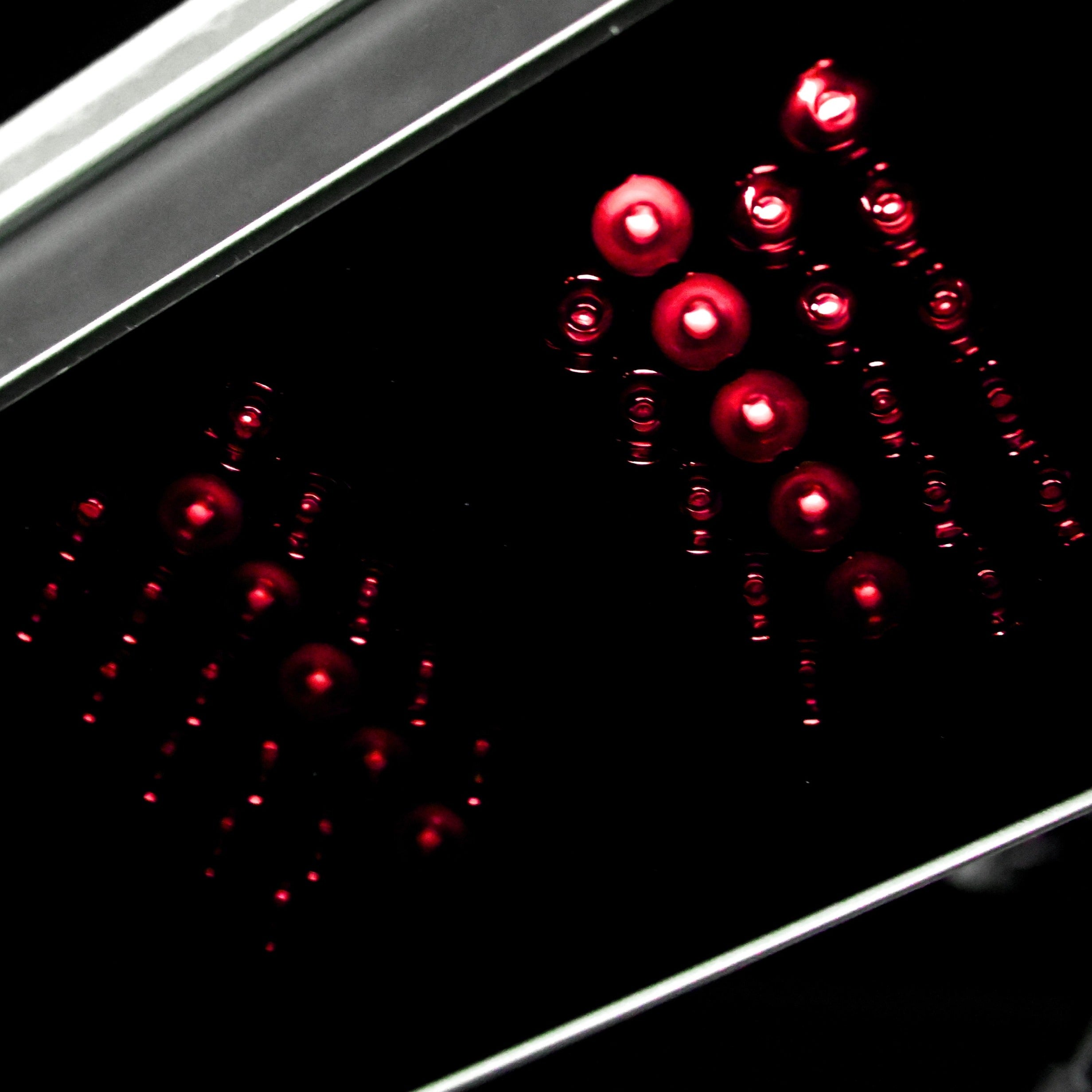

- Dual 2,000 FPS high-speed cameras — precise ball tracking at any speed
- PhysX 6D Physics Engine — realistic ball flight simulation using 6-dimensional physics
- 24" × 20" hitting zone — wide detection area for consistent tracking
- Open software compatibility — works with GSPro and E6 Connect, more coming
- Marked ball technology — 12 high-quality marked balls included for precise spin measurement
- Ethernet connection — wired connection for reliable, low-latency data transfer
- 8 tracked metrics including spin axis, side spin, back spin, and horizontal launch angle
Technical Specifications
| Tracking Technology | Dual 2,000 FPS high-speed cameras |
| Physics Engine | PhysX 6D |
| Shot Metrics | 8 (requires marked balls) |
| Hitting Zone | 24" × 20" |
| Mounting Location | Overhead — 9–10 ft above tee, 2 ft in front |
| Connectivity | Ethernet (port required on PC) |
| Dimensions | 21.8" L × 6.9" W × 4.9" H |
| Weight | 19.2 lbs |
| Compatible Software | GSPro, E6 Connect (more to come) |
| OS Requirement | Windows 10 (64-bit) only — not Mac compatible |
Data Parameters Tracked (with marked balls)
Club Speed
Ball Speed
Launch Angle
Spin Axis
Horizontal Launch Angle
Back Spin
Side Spin
Total Spin
In The Box
- NVISAGE N1 launch monitor sensor
- Calibration board
- Power adapter and cable
- Ethernet cable
- Ethernet → USB 3.0 adapter
- Mounting screws
- Level
- 12 high-quality marked balls
Note: An NVISAGE N1 Mount for Carl's Place Pro Enclosure is available as a separate add-on. Contact us for details.
Compatible Software
GSPro
The most popular golf simulator platform. Play 200,000+ courses. Annual subscription required. Requires Windows PC.
E6 Connect
Full-featured simulator software with 100+ courses, putting, and games. Annual license available. Requires Windows PC.
PC Required: The NVISAGE N1 requires a Windows 10 (64-bit) PC with Ethernet port. Not compatible with Mac or iOS. Minimum: Intel i5 8400, 8GB RAM, GTX 1060 or AMD Ryzen 3600X+.
Is This Right For You?
The Overhead Sim Builder
Building a permanent sim room and wants the monitor out of the hitting bay entirely. Ceiling mounting keeps the space clean.
Great fit ✓
The Open-Software Golfer
Wants GSPro or E6 Connect without being locked into a proprietary subscription ecosystem.
Great fit ✓
The Mac / Apple User
The N1 requires Windows 10 (64-bit) and is not compatible with macOS or iOS. Consider the Garmin R50 instead.
Not ideal ✗
The Portable / Range Golfer
The N1 is ceiling-mounted and requires wired Ethernet. It's not designed for portable or outdoor range use.
Not ideal ✗

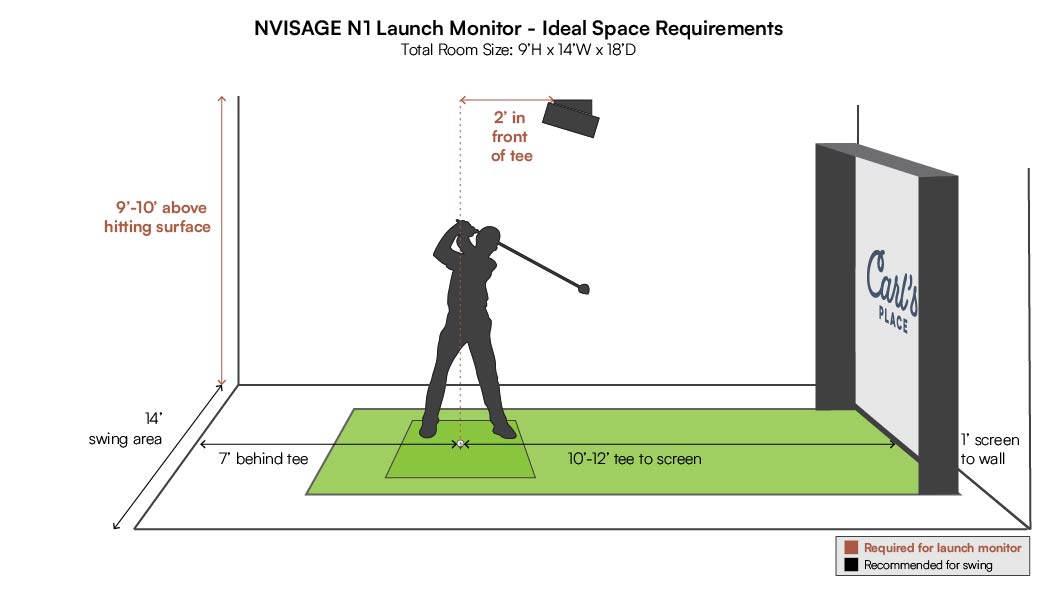

Room Size Guide
9–10 ft
Ceiling Height
10 ft+
From Screen
2 ft
In Front of Tee
| Monitor height | 9–10 ft above hitting surface |
| Forward position | 2 ft in front of tee/hitting area |
| Distance from screen | ~8 ft (when hitting from 10 ft away) |
| Minimum room width | 3m+ recommended |
| Enclosure compatible | Yes — Carl's Place Pro Enclosure (with N1 mount) |
| Wiring needed | Ethernet cable from unit to PC (included) |
Ceiling height is critical for this unit. Measure to the lowest obstacle in the hitting area, not the peak of the room.
What You'll Also Need
Carl's Place Pro Enclosure
Compatible with the NVISAGE N1 mount add-on
View →
HD Impact Screen 3m Wide
High-quality impact screen to project onto
View →
Optoma GT2000HDR Projector
Best value short-throw for simulator rooms
View →
TurfHound Pro Hitting Mat
Completes the hitting bay setup
View →
Also required: A Windows 10 PC with Ethernet port, Intel i5 8400+, 8GB RAM, and GTX 1060 / AMD Ryzen 3600X+. A GSPro or E6 Connect license is required separately.
Frequently Asked Questions
Does the NVISAGE N1 require special balls? +
Yes. The N1 uses marked balls exclusively for accurate spin measurement. 12 high-quality marked balls are included with every unit. Additional balls are available from NVISAGE.
Does it work on Mac or iPad? +
No. The NVISAGE N1 is only compatible with Windows 10 (64-bit). It is not compatible with macOS, iOS, or Android. If you need Mac compatibility, consider the Garmin R50 instead.
How is the NVISAGE N1 mounted? +
The N1 mounts overhead — 9–10 feet above your hitting surface and 2 feet in front of the tee. It connects via Ethernet cable (included) to your PC. An optional mounting bracket for Carl's Place Pro Enclosures is available as a separate add-on.
What software does it come with? +
The N1 does not include software — it is compatible with GSPro and E6 Connect, which are purchased separately. Both require Windows PCs and annual license fees. More software compatibility is expected in future updates.
How does the N1 compare to the Uneekor EYE XO2? +
Both are overhead-mounted camera-based systems. The Uneekor EYE XO2 tracks more metrics (including club data) and has broader software compatibility. The NVISAGE N1 is more affordable and designed as a focused entry into overhead-mount simulation. If club path data is essential, the EYE XO2 is the stronger choice.
Is a subscription required? +
The N1 hardware requires no ongoing subscription. However, the golf simulation software (GSPro, E6 Connect) has its own separate annual license costs.
What are the minimum PC requirements? +
Minimum: Intel i5 8400 processor, 8GB RAM, GeForce GTX 1060 (or AMD Ryzen 3600X / AMD 3rd gen+), Windows 10 64-bit version 1803 or higher, and an Ethernet port. AMD 2700 is NOT compatible. We recommend confirming specs with the software you intend to use.
Does it work outdoors? +
The NVISAGE N1 is designed for indoor use with a fixed overhead mount. It requires an Ethernet connection to a PC, making outdoor use impractical.
