Key Features

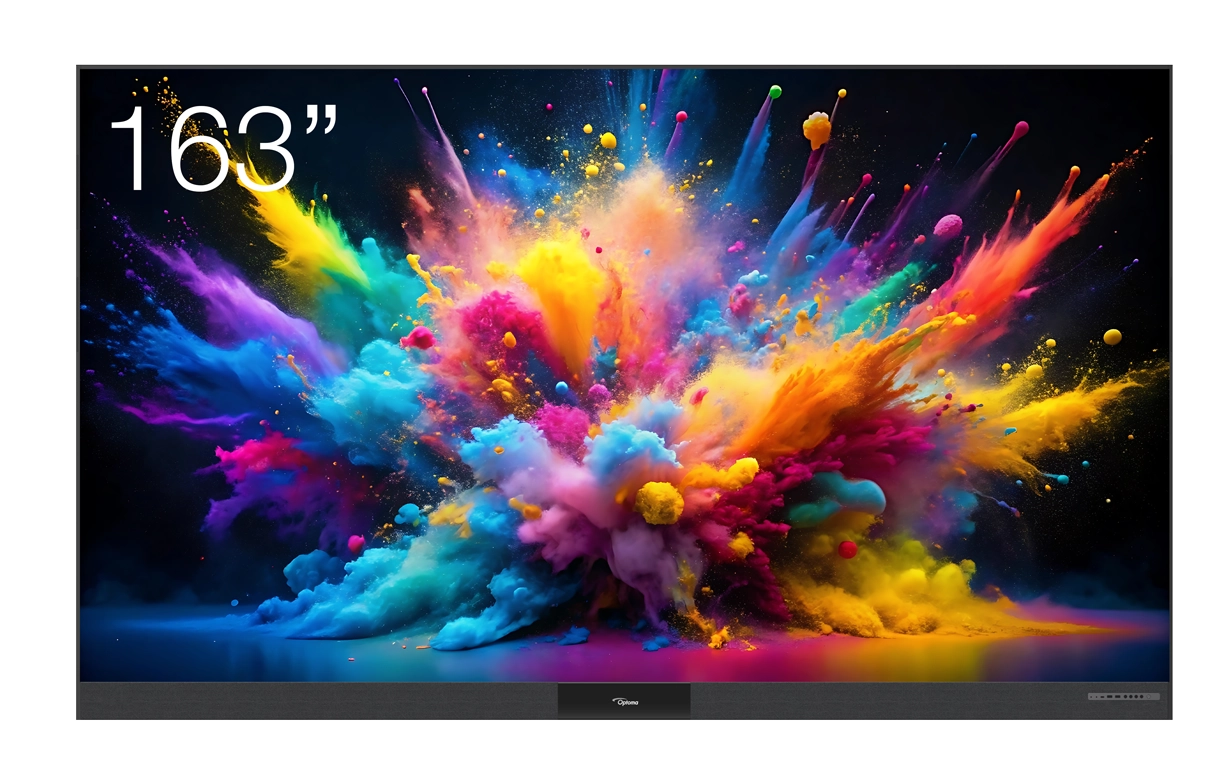

- 163" all-in-one Flip-Chip COB dvLED display
- 1.87mm pixel pitch — optimised for large-room viewing with excellent image uniformity
- 4K signal input (1080p native display resolution)
- Built-in media player with internal storage
- 12 spare tiles included for easy field replacement
- No projection distance required — mount flush to wall
- 3-year on-site warranty
Technical Specifications
| Screen Size | 163 inches diagonal |
| Pixel Pitch | 1.87mm |
| Native Resolution | 1920×1080 (Full HD) |
| Signal Input | 4K (downscaled to 1080p) |
| Technology | Flip-Chip COB LED |
| Media Player | Built-in (Android-based) |
| Spare Tiles | 12 included |
| Warranty | 3-Year On-Site |
In The Box
- dvLED display (assembled)
- Power supply
- Control card

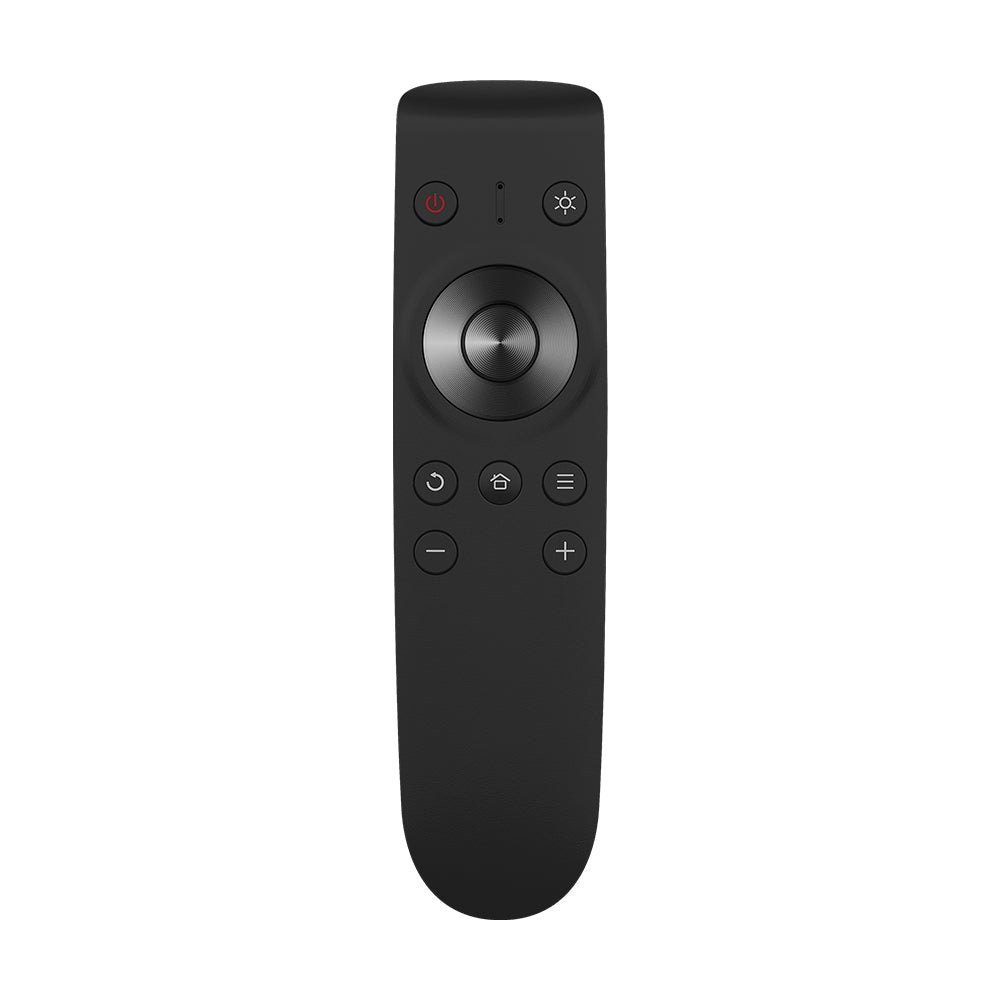

- Remote control
- 12 spare tiles
- Quick start guide
Note: Professional installation recommended. Installation service available — call for quote.
Is This Right For You?
✓ Commercial simulator bays
Maximum immersion for commercial golf venues and multi-bay facilities
✓ Premium home sim rooms
The largest format for dedicated home simulator builds
✓ No projection throw distance
Installs flush to wall — ideal where throw distance isn't available
✗ Budget builds
Not suited for residential setups under $50k budget, outdoor use, or spaces needing touch interaction
What You'll Also Need
PC or Media Player
Or use the built-in media player for standalone playback
HDMI Cable
High-speed HDMI 2.0 or 2.1 recommended
Professional Installation
Strongly recommended — call us to arrange
Frequently Asked Questions
What is dvLED and how is it different from a projector? +
dvLED (Direct View LED) displays use self-emissive LED pixels — there's no projector, no lamp, and no screen. The image is generated directly on the panel surface, producing deep blacks, vivid colour, and consistent brightness regardless of ambient light. Unlike a projector, there's no throw distance required and no risk of ball impact damaging a lamp unit.
Does it require professional installation? +
Yes — we strongly recommend professional installation for all dvLED displays. The FHDC163 ships as an assembled all-in-one cabinet but still requires correct wall mounting, cabling, and calibration. SimGolfer can arrange installation — call us for a quote.
Can it be used as a golf simulator impact screen? +
The FHDC163 uses Flip-Chip COB technology which is more durable than standard LED panels, but it is not an impact-rated screen. For simulator bays where ball strikes are possible, physical protection (netting or a baffle system) should be positioned in front of the display. We can advise on setup configurations — call us.
What's included in the 3-year warranty? +
The 3-year on-site warranty covers parts and labour at your location — you don't need to ship the unit anywhere. Optoma sends a certified technician to diagnose and repair on-site. 12 spare tiles are also included in the box for minor field repairs.
Is installation available through SimGolfer? +
Yes — white glove installation is available. Call us at +1 (424) 600-9901 or contact us through the site and we'll arrange a quote based on your location and setup requirements.
