- Maximum unloading load
- 360 lb
- Inside base width
- 30–38 in
- Powered yoke adjustment
- 28 in
- Model
- PG-360
Review the key specifications here, then check the full details and setup requirements below.
Product details

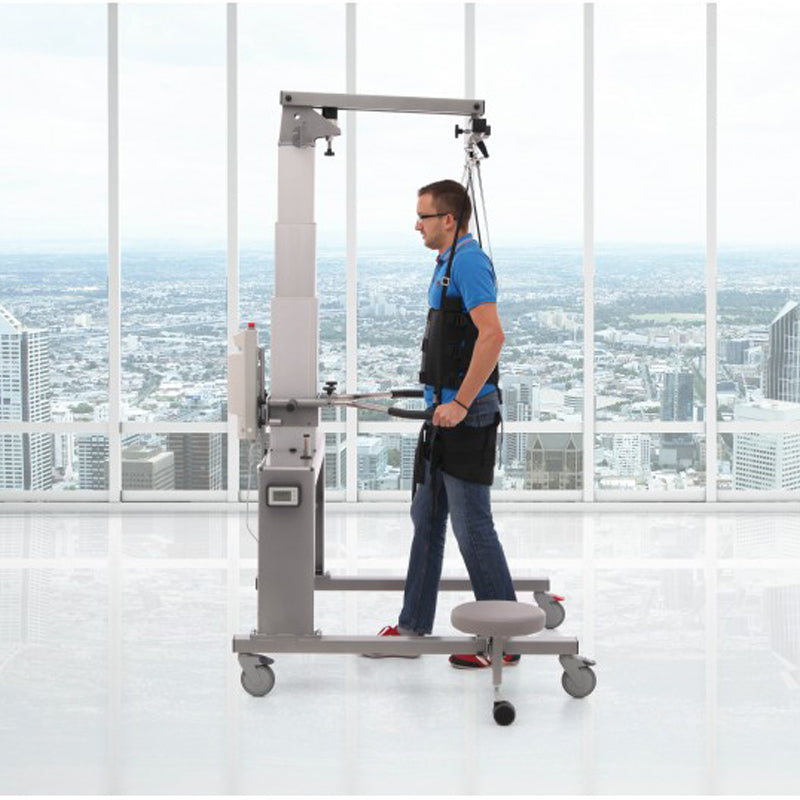

The HCI PhysioGait PG-360 provides adjustable body-weight support for supervised walking sessions over a firm surface or a compatible treadmill. The frame combines a 360 lb maximum unloading load with an adjustable-width base and powered yoke movement.
One standard universal harness is included. Check the user’s harness fit, treadmill clearance and room height when planning the setup.
Features
Specifications
- Model
- PG-360
- Maximum unloading load
- 360 lb
- Inside base width
- 30–38 in
- Powered yoke adjustment
- 28 in
- Maximum patient height
- 7 ft 2 in
- Maximum patient height on a 6 in treadmill
- 6 ft 8 in
- Included harness fit
- 25–55 in
- Caster diameter
- 5 in
- Leg length
- 48 in
- Leg height
- 8 in
Delivery
Standard delivery terms vary by product and destination.
The available delivery method and any applicable shipping, special-access, remote-location, inside-delivery, installation or white-glove charge will be shown or confirmed by SimWellness before the order is released.
Check access, clearances and any utility requirements . If you are unsure, send us the details and we’ll help you check.
Warranty
Returns
Return terms vary by product.
Contact SimWellness before sending anything back so we can confirm the applicable terms and arrange the correct return process.
We’d rather help you check the practical details . If you are unsure about dimensions, access or power, send them over.
A few practical things worth checking.
What is the PG-360 unloading limit?
The maximum unloading load is 360 lb.

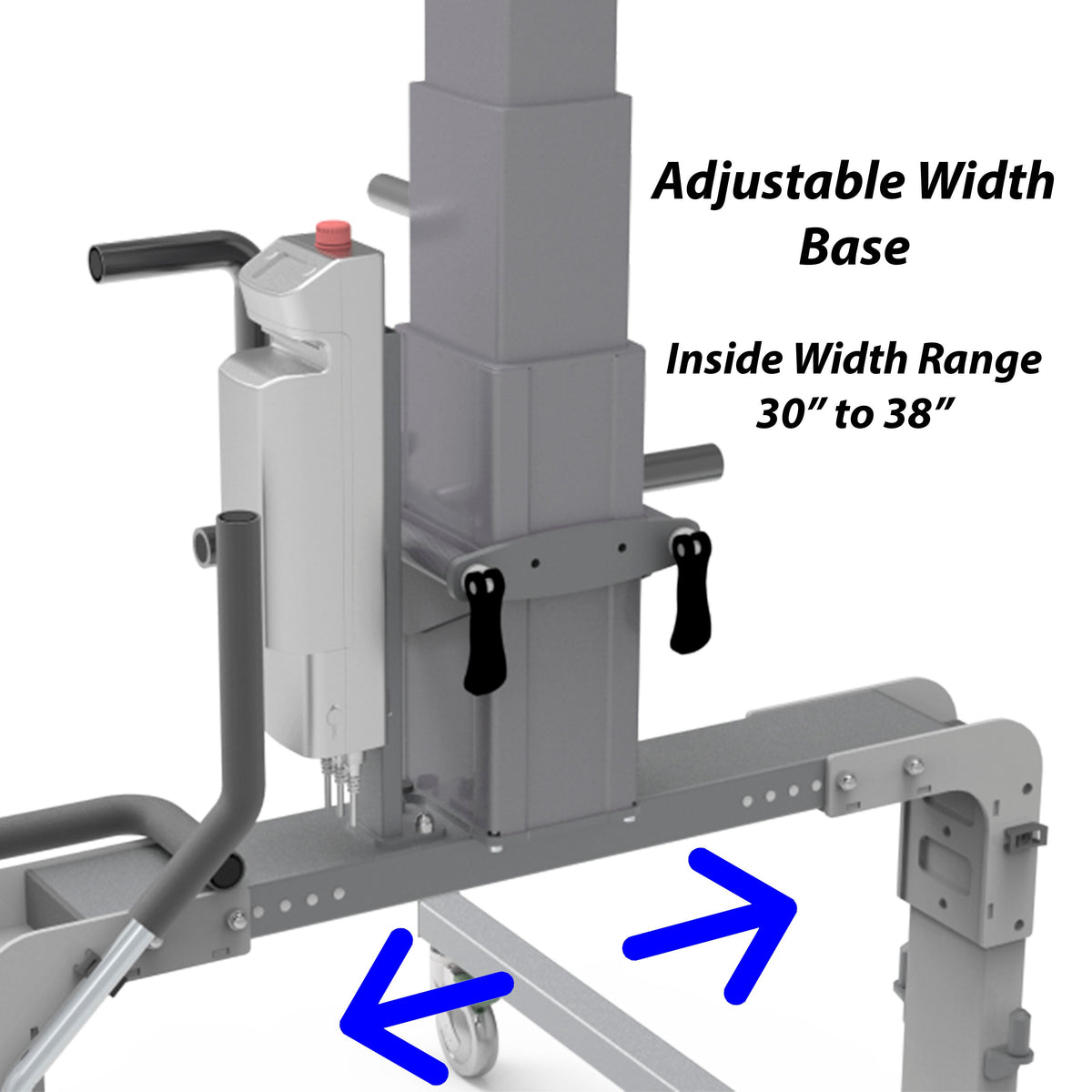

Can it be used over an existing treadmill?
The inside base width adjusts from 30 to 38 inches. Confirm the treadmill’s full external dimensions and overhead clearance before selecting a setup.

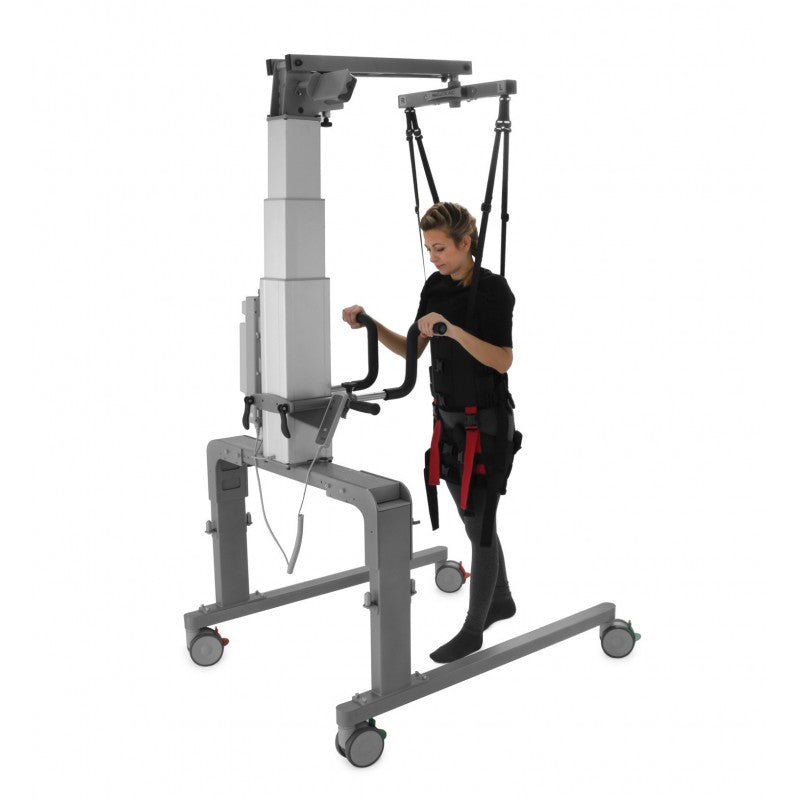

Which harness is included?
One standard universal harness fitting 25–55 inches is included. The larger 40–70 inch harness is a separate option.
What user height does the frame accommodate?
The PG-360 technical table gives a maximum patient height of 7 feet 2 inches over ground, or 6 feet 8 inches over a treadmill with a 6 inch deck.

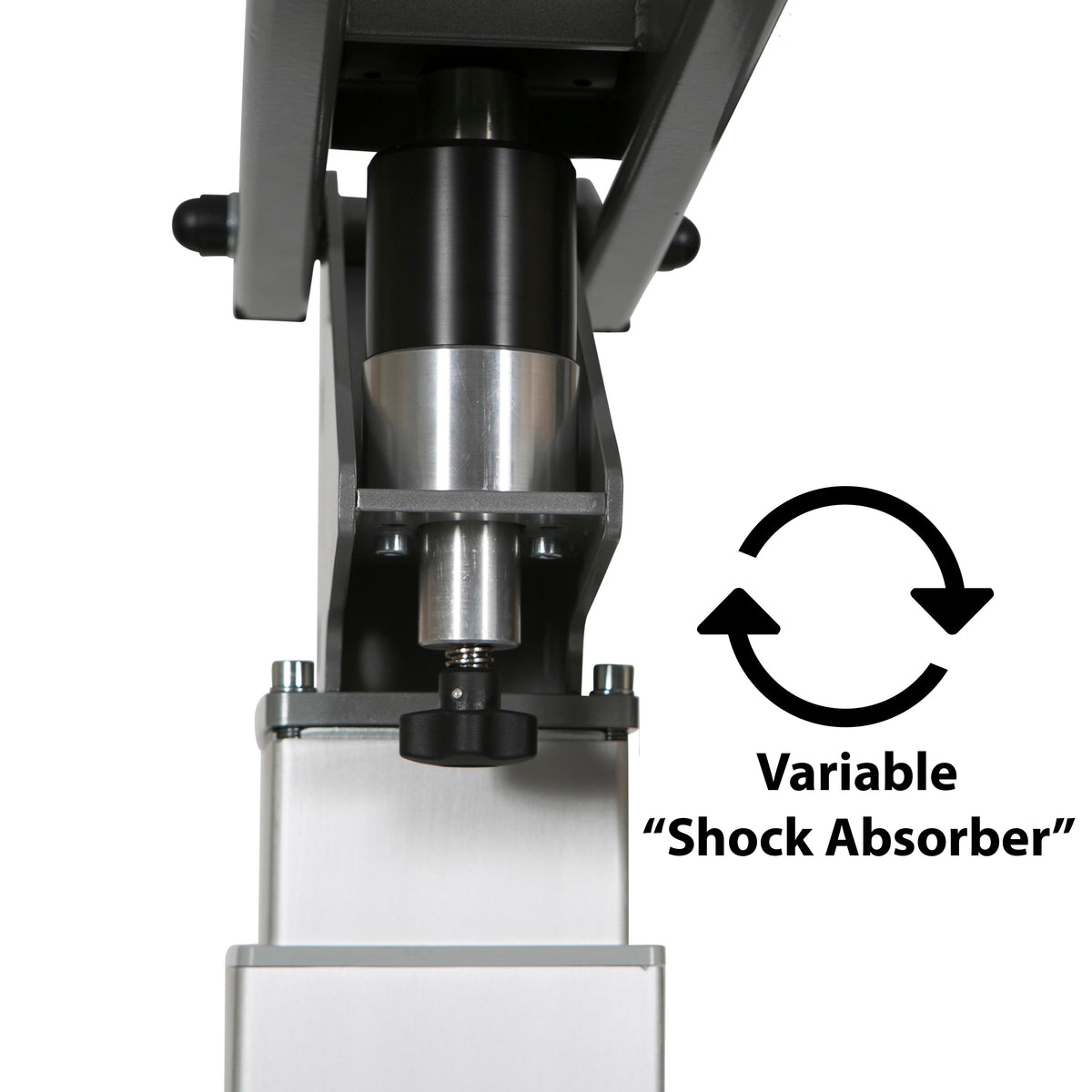

Can the support height be adjusted?
Yes. Powered yoke adjustment provides 28 inches of travel.
