- Capacity
- 1 person
- Dimensions
- Ø90 × 230 cm
- Pressure
- 2.0 ATA
- Material
- Aluminum alloy
Key dimensions and requirements at a glance.
Product details
The OLV-YTD04 is a single-person, horizontal hard-shell chamber made from aluminum alloy. The supplier lists Ø90 × 230 cm chamber dimensions and a maximum working pressure of 2.0 ATA.

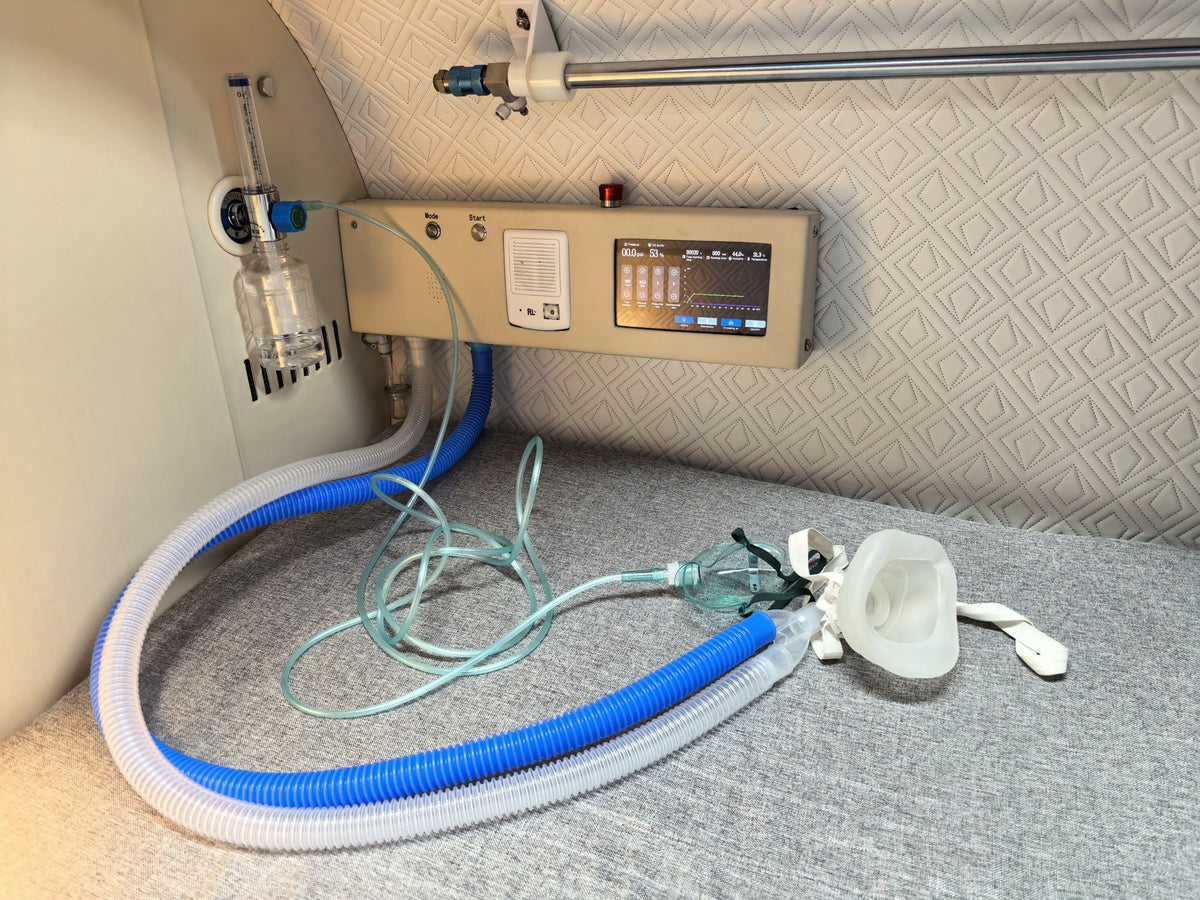

Its package is listed with an internal touchscreen, intercom, air conditioning and a built-in breathing system (BIBS). It is the smaller-diameter option alongside the newer YTD03.

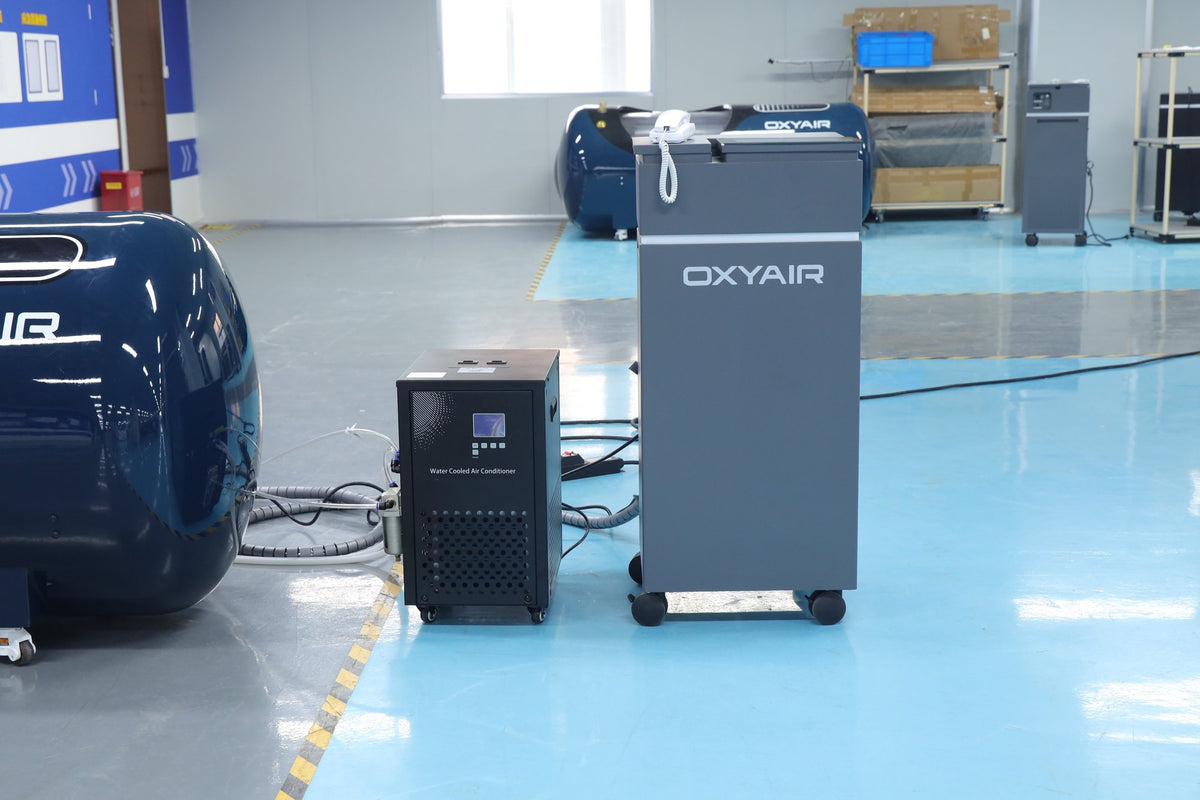

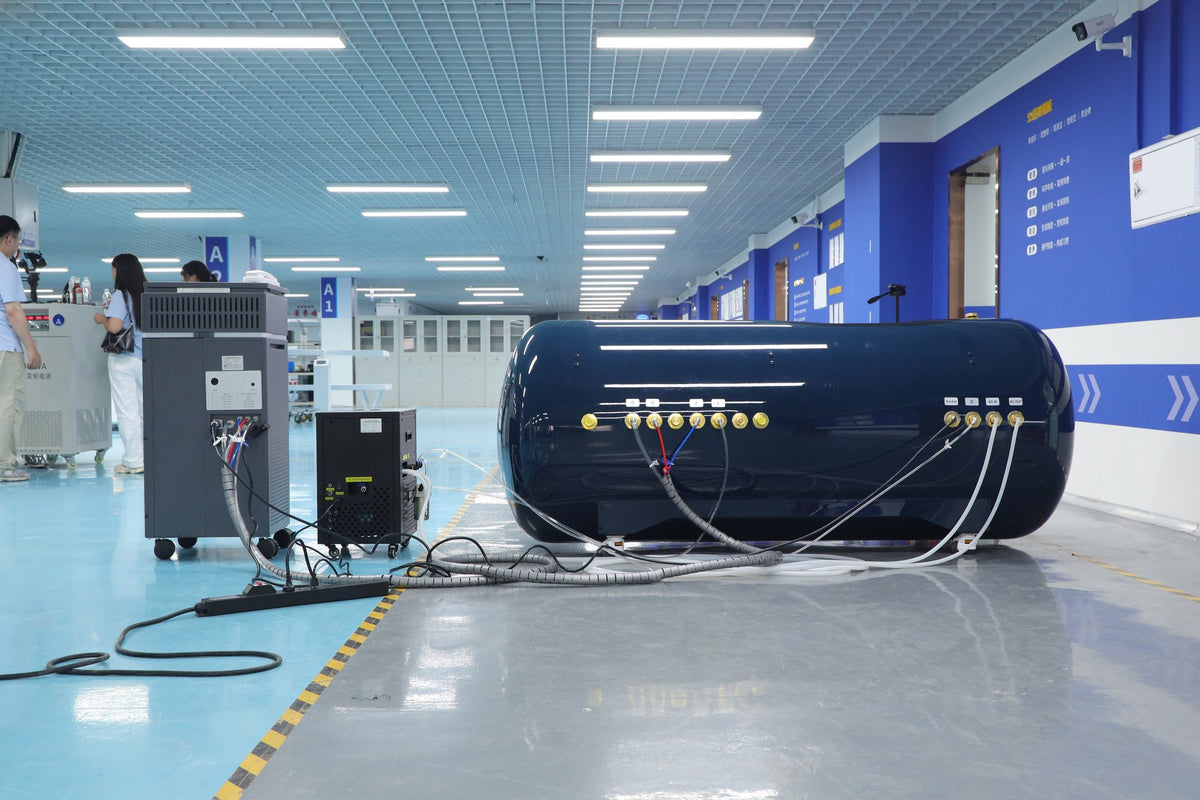

Chamber dimensions are not a complete installed footprint. Account separately for external equipment, access and servicing, and verify the final technical and site requirements for your chosen model.
Features
Supplier-listed equipment for OLV-YTD04. The exact contents are confirmed when we review your enquiry.
- Chamber
- Oxygen concentrator system
- Air conditioner
- Internal touch screen
- Intercom
- BIBS system
- Mattress and pillow
- Chamber lighting
Specifications
- Model
- OLV-YTD04
- Chamber type
- Hard-Shell Lying
- Maximum working pressure
- 2.0 ATA
- Capacity
- 1 person
- Shell material
- Aluminum alloy
- Chamber dimensions
- Ø90 × 230 cm
- Oxygen flow
- 10 L/min
- Oxygen purity
- 93% ±3% (supplier specification)
- Pressurization medium
- Air
- Warranty
- 2 years supplier warranty
Specifications are provided by the supplier and must be checked against the exact model documentation.
Delivery
The supplier has indicated approximately 30–40 days for sea delivery to the United States. This is an estimate, not a confirmed date for this model or destination.
Freight, customs, unloading, access, external equipment placement and installation arrangements are reviewed individually. No included on-site installation service is assumed.
Check access, clearances and any utility requirements . If you are unsure, send us the details and we’ll help you check.
Warranty
2 years supplier warranty. This is the supplier-stated term, subject to its written warranty.
Remote guidance and technical support have been discussed with the supplier. The scope, service labor, covered parts, replacement shipping and any local callout costs require written confirmation.
Returns
Return terms vary by product.
Contact SimWellness before sending anything back so we can confirm the applicable terms and arrange the correct return process.
We’d rather help you check the practical details . If you are unsure about dimensions, access or power, send them over.
Compare hard-shell lying chambers.
Compare the key differences side by side.
Current model
OxyAir OLV-YTD04 2.0 ATA Hard-Shell Lying Hyperbaric Chamber
$30,599.00
- Capacity
- 1 person
- Pressure
- 2.0 ATA
- Dimensions
- Ø90 × 230 cm
- Material
- Aluminum alloy

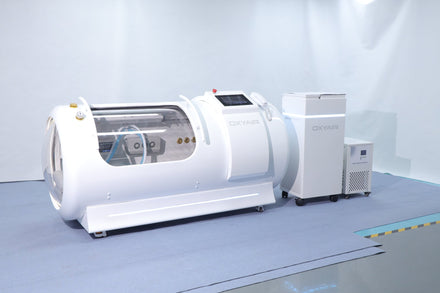

OxyAir OLV-YTD03 2.0 ATA Hard-Shell Lying, New Generation Hyperbaric Chamber
$35,999.00
- Capacity
- 1 person
- Pressure
- 2.0 ATA
- Dimensions
- Ø100 × 230 cm
- Material
- Aluminum alloy
Want to see the rest? View the full range
Questions about this chamber?
How does this model compare with other OxyAir chambers?
This model is listed as Hard-Shell Lying, for 1 person, with a maximum working pressure of 2.0 ATA and chamber dimensions of Ø90 × 230 cm. These are supplier-provided specifications; final documentation must be checked for the exact model.
What equipment is included?
The Included Equipment section lists the supplier-stated package for this exact model. Options and accessories vary between chambers. We will verify the final equipment package in writing before any order proceeds.
Can you recommend a treatment pressure or medical use?
We can provide manufacturer specifications and product information, but cannot advise on medical suitability, treatment pressures or clinical use. Please consult a qualified healthcare professional for medical guidance.
How are shipping and installation arranged?
The supplier has provided a general estimate of 30–40 days for sea delivery to U.S. destinations; no delivery date is confirmed for this model or location. Freight, site access, unloading, utilities and remote versus on-site installation support must be reviewed individually.
What warranty and service terms apply?
The supplier lists 2 years supplier warranty for this model, subject to the manufacturer's written terms. Before any order, we would confirm covered parts, replacement-part shipping, servicing and whether support is remote or on-site.
