- Capacity
- 300 kg (660 lb)
- Dimensions
- 580 × 450 × 1,025 mm (22.8 × 17.7 × 40.4 in)
- Type
- Professional segmental BIA analyzer
- Power
- Manufacturer-specified AC adapter
Key dimensions and requirements at a glance.
Product details

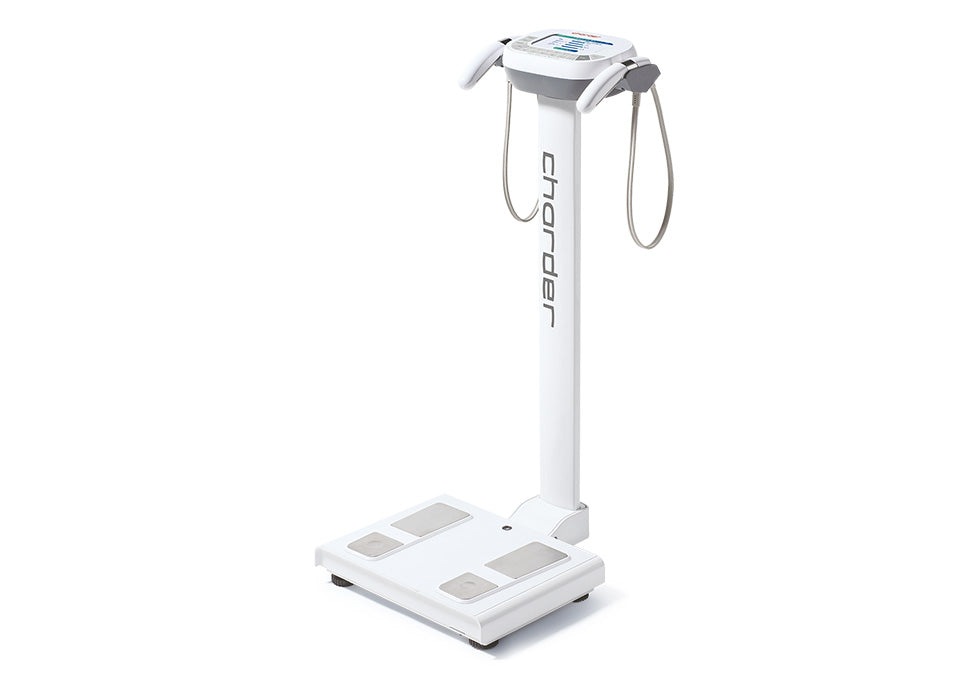

Charder MA601 Advanced Body Composition Analyzer
The Charder MA601 is a professional three-frequency, eight-electrode body composition analyzer for fitness centres, wellness providers and assessment clinics. Its 7-inch touchscreen presents segmental estimates of muscle, fat and body water for consistent client progress reviews.

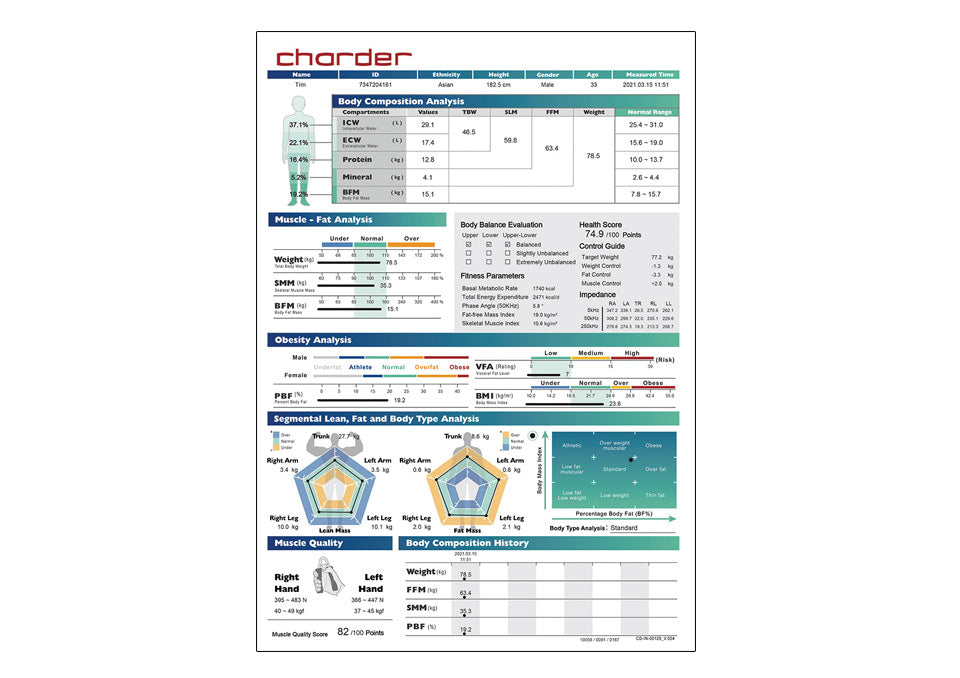

The MA601 supports up to 50,000 stored measurements, professional result sheets and compatible data export workflows. Available report formats, printer connections and Charder Insight integration depend on the supplied configuration. Ask SimWellness to confirm software and accessory requirements for your facility.
Important: BIA measurements are estimates influenced by hydration and testing conditions. Follow the manufacturer’s preparation guidance and contraindications, including precautions for implanted electronic medical devices.
Features
Specifications
- Capacity
- 300 kg (660 lb)
- Dimensions
- 580 × 450 × 1,025 mm (22.8 × 17.7 × 40.4 in)
- Type
- Professional segmental BIA analyzer
- Weight
- Approx. 12 kg (27 lb)
- Frequencies
- 5, 50 and 250 kHz (3 frequencies; 15 impedance measurements)
- Display

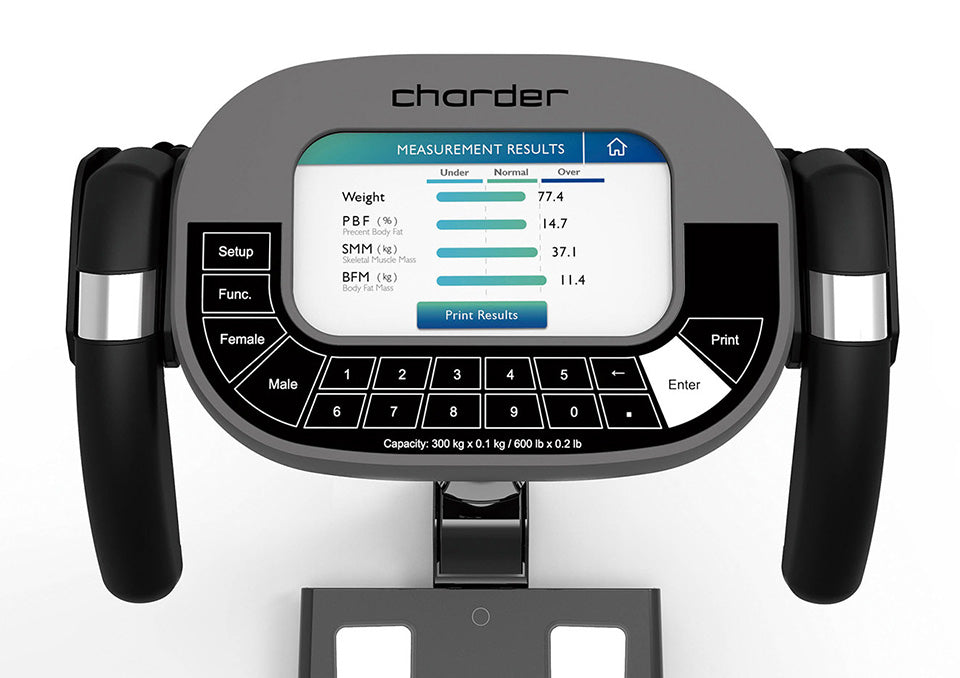

- 7-inch color touchscreen
- Electrodes
- 8 tactile electrodes
- Measurement Time
- Under 45 seconds
- Software
- Charder Insight (connection/accessories depend on configuration)
- Data Storage
- Up to 50,000 measurement records
- Connectivity
- Wi-Fi, Ethernet, USB; Bluetooth optional by configuration
- Power
- Manufacturer-specified AC adapter
- Use
- Professional fitness, wellness and clinic assessments
Delivery
Standard delivery terms vary by product and destination.
The available delivery method and any applicable shipping, special-access, remote-location, inside-delivery, installation or white-glove charge will be shown or confirmed by SimWellness before the order is released.
Check access, clearances and any utility requirements before ordering. If you are unsure, send us the details and we’ll help you check.
Warranty
Returns
Return terms vary by product.
Contact SimWellness before sending anything back so we can confirm the applicable terms and arrange the correct return process.
We’d rather help you check the practical details before you order. If you are unsure about dimensions, access or power, send them over.
Compare Charder body composition analyzers
Compare measurement technology, capacity, displays and software between the Charder U310, MA601 and MA801.
Current model

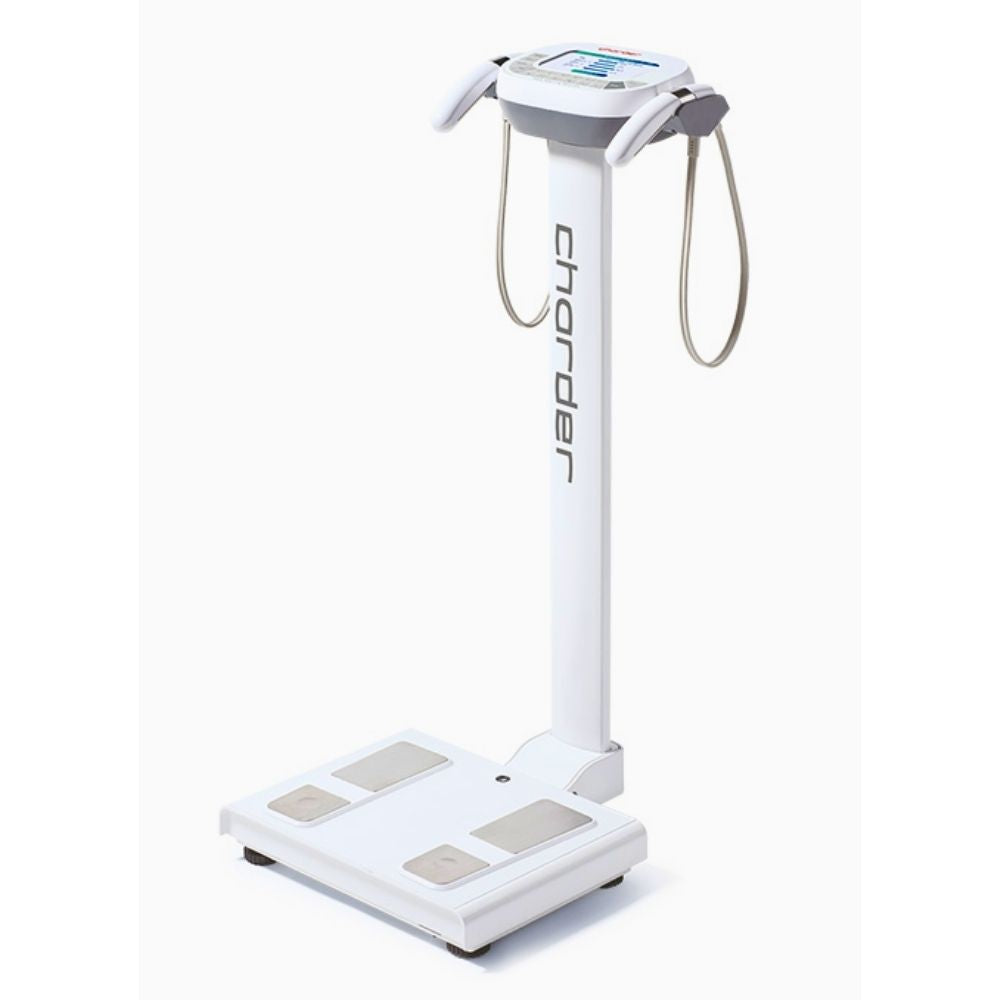

Charder MA601 Advanced Body Composition Analyzer
$7,299.00
- Analysis
- 5, 50 and 250 kHz (3 frequencies; 15 impedance measurements)
- Capacity
- 300 kg (660 lb)
- Display
- 7-inch color touchscreen
- Software
- Charder Insight (connection/accessories depend on configuration)

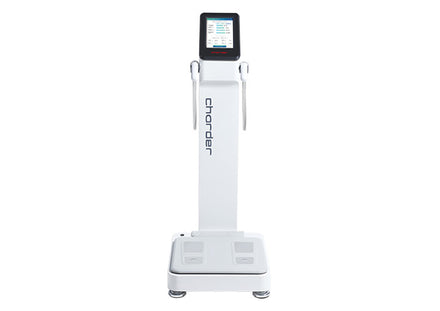

Charder MA801 Professional Body Composition Analyzer
$15,995.00
- Analysis
- 5, 20, 50, 100 and 250 kHz (5 frequencies; 25 impedance measurements)
- Capacity
- 300 kg (660 lb)
- Display
- 10.1-inch color touchscreen
- Software
- Charder Insight (configuration and software version dependent)

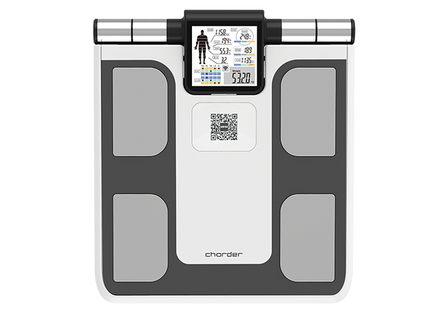

Charder U310 Segmental Body Composition Analyzer
$440.00
- Analysis
- 5 and 50 kHz (2 frequencies; 10 segmental impedance measurements)
- Capacity
- 200 kg (440 lb)
- Display
- Platform LCD; results and history in Charder ProScan
- Software
- Charder ProScan mobile app (compatible iOS / Android)
