- Capacity
- 300 kg (660 lb)
- Dimensions
- 875 × 463 × 1,205 mm (34.4 × 18.2 × 47.4 in)
- Type
- Advanced professional segmental BIA analyzer
- Power
- Manufacturer-specified AC adapter
Key dimensions and requirements at a glance.
Product details

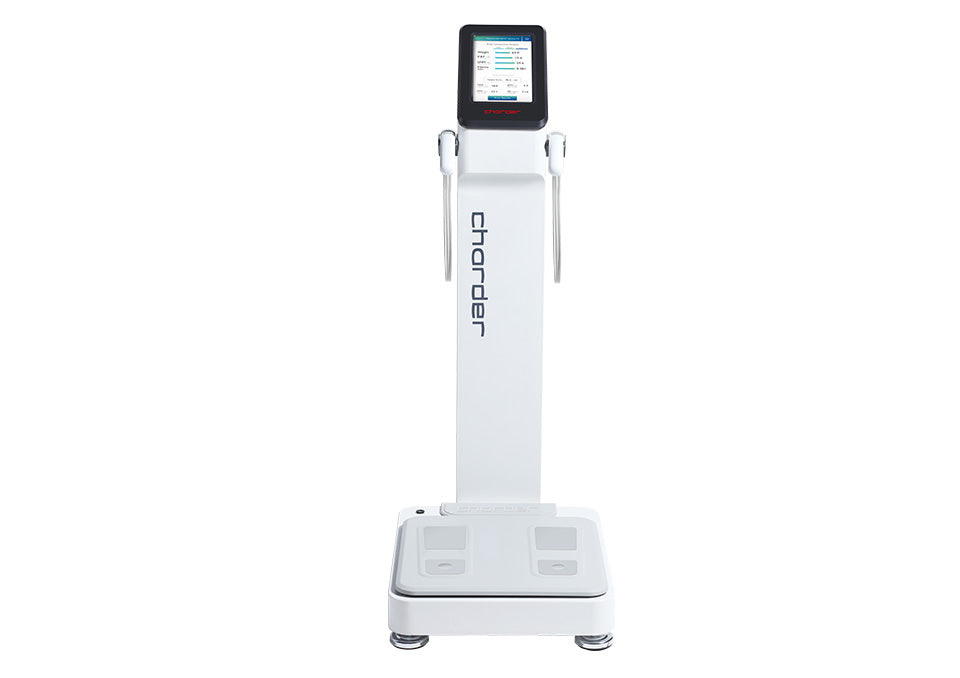

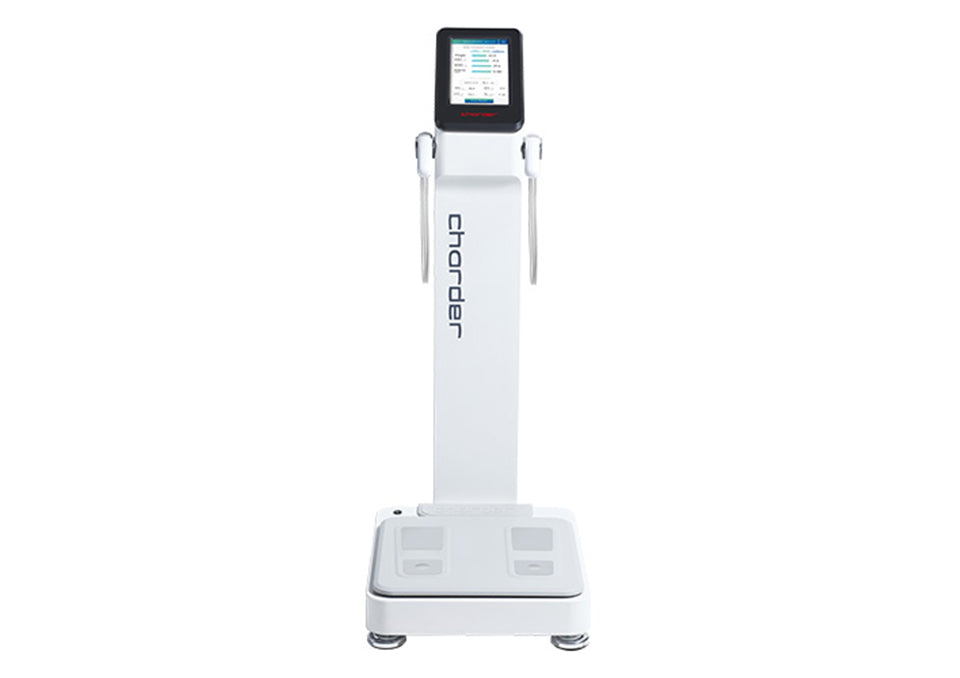

Charder MA801 Professional Body Composition Analyzer
The Charder MA801 is a professional five-frequency body composition analyzer designed for clinics, universities and research facilities. Eight-electrode segmental BIA and a 10.1-inch touchscreen support detailed assessments of body composition, muscle distribution and fluid-balance estimates.

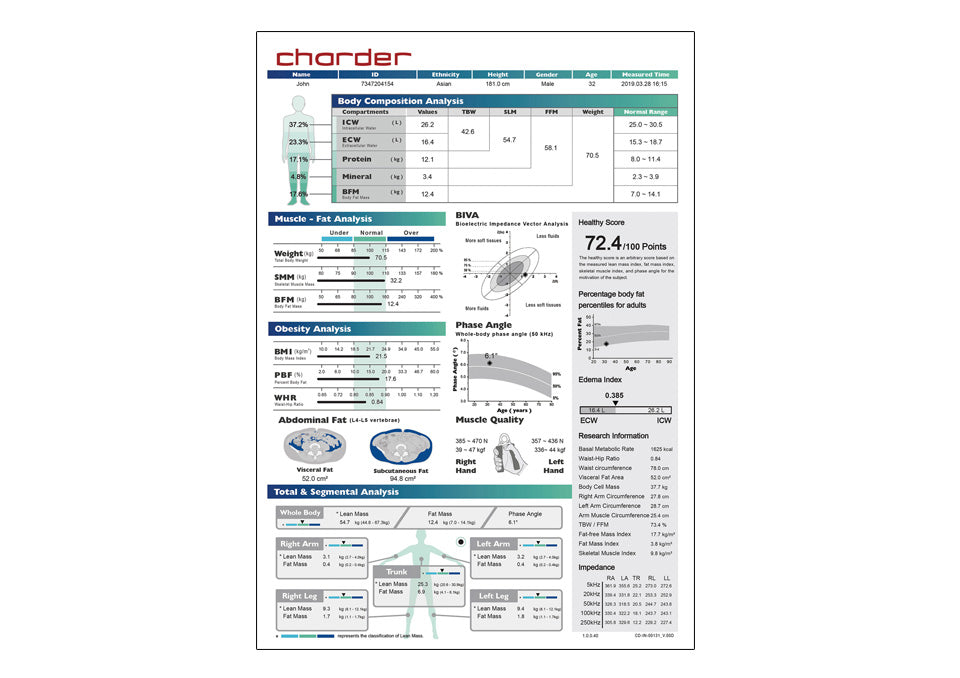

Built for repeat assessments, the MA801 stores up to 100,000 measurement records and supports compatible reporting and Charder Insight data workflows. Available reports, accessories and software integrations depend on the unit configuration. Contact SimWellness to confirm any specific reporting or IT requirements before ordering.
Important: BIA results are estimates affected by hydration and testing conditions. Follow Charder’s measurement instructions and contraindications, including precautions for people with implanted electronic medical devices.
Features
Specifications
- Capacity
- 300 kg (660 lb)
- Dimensions
- 875 × 463 × 1,205 mm (34.4 × 18.2 × 47.4 in)
- Type
- Advanced professional segmental BIA analyzer
- Weight
- Approx. 31 kg (68 lb)
- Frequencies
- 5, 20, 50, 100 and 250 kHz (5 frequencies; 25 impedance measurements)

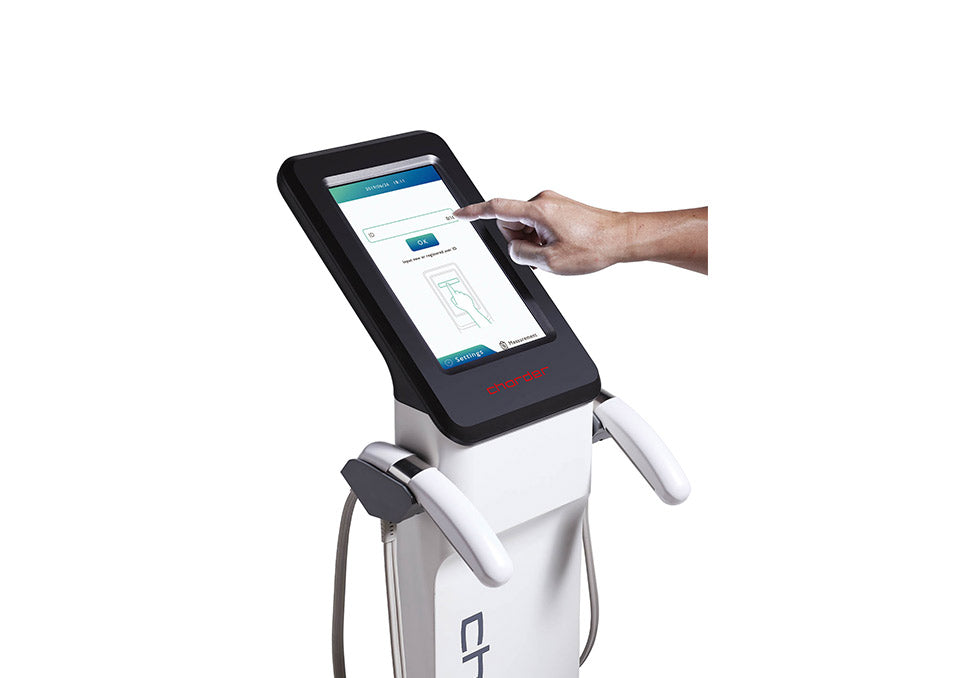

- Display
- 10.1-inch color touchscreen
- Electrodes
- 8 tactile electrodes
- Measurement Time
- Under 50 seconds
- Software
- Charder Insight (configuration and software version dependent)
- Data Storage
- Up to 100,000 measurement records
- Connectivity
- Wi-Fi, Ethernet, Bluetooth, USB, RS232
- Power
- Manufacturer-specified AC adapter
- Use
- Professional, research and institutional assessments
Delivery
Standard delivery terms vary by product and destination.
The available delivery method and any applicable shipping, special-access, remote-location, inside-delivery, installation or white-glove charge will be shown or confirmed by SimWellness before the order is released.
Check access, clearances and any utility requirements before ordering. If you are unsure, send us the details and we’ll help you check.
Warranty
Returns
Return terms vary by product.
Contact SimWellness before sending anything back so we can confirm the applicable terms and arrange the correct return process.
We’d rather help you check the practical details before you order. If you are unsure about dimensions, access or power, send them over.
Compare Charder body composition analyzers
Compare measurement technology, capacity, displays and software between the Charder U310, MA601 and MA801.
Current model
Charder MA801 Professional Body Composition Analyzer
$15,995.00
- Analysis
- 5, 20, 50, 100 and 250 kHz (5 frequencies; 25 impedance measurements)
- Capacity
- 300 kg (660 lb)
- Display
- 10.1-inch color touchscreen
- Software
- Charder Insight (configuration and software version dependent)
Charder MA601 Advanced Body Composition Analyzer
$7,299.00
- Analysis
- 5, 50 and 250 kHz (3 frequencies; 15 impedance measurements)
- Capacity
- 300 kg (660 lb)
- Display
- 7-inch color touchscreen
- Software
- Charder Insight (connection/accessories depend on configuration)
Charder U310 Segmental Body Composition Analyzer
$440.00
- Analysis
- 5 and 50 kHz (2 frequencies; 10 segmental impedance measurements)
- Capacity
- 200 kg (440 lb)
- Display
- Platform LCD; results and history in Charder ProScan
- Software
- Charder ProScan mobile app (compatible iOS / Android)
