- Movement
- Linear stepping
- Seat
- Fixed, non-swiveling
- Max User Weight
- 450 lb
- Resistance
- 16 levels
Review the key specifications here, then check the full details and setup requirements below.
Product details

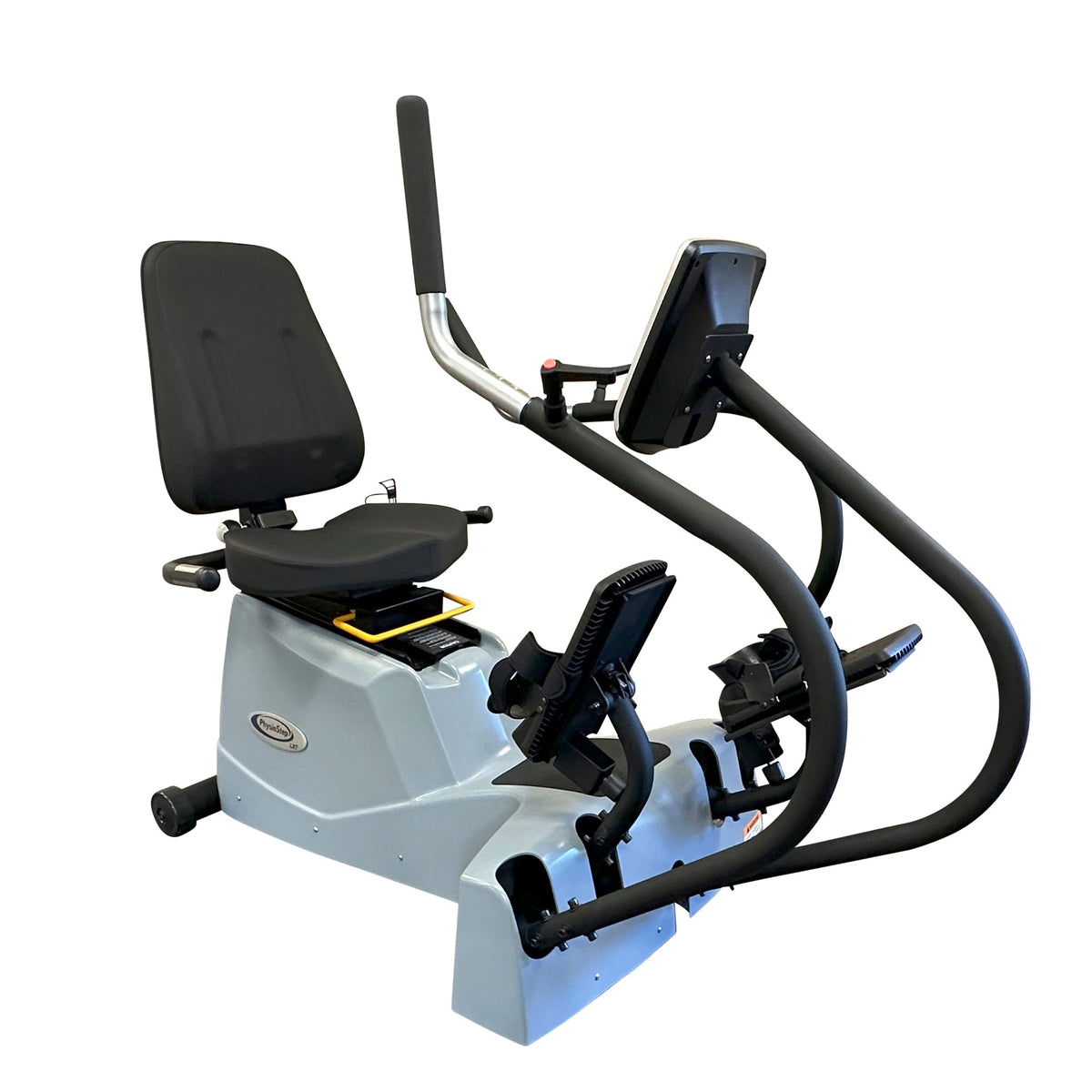

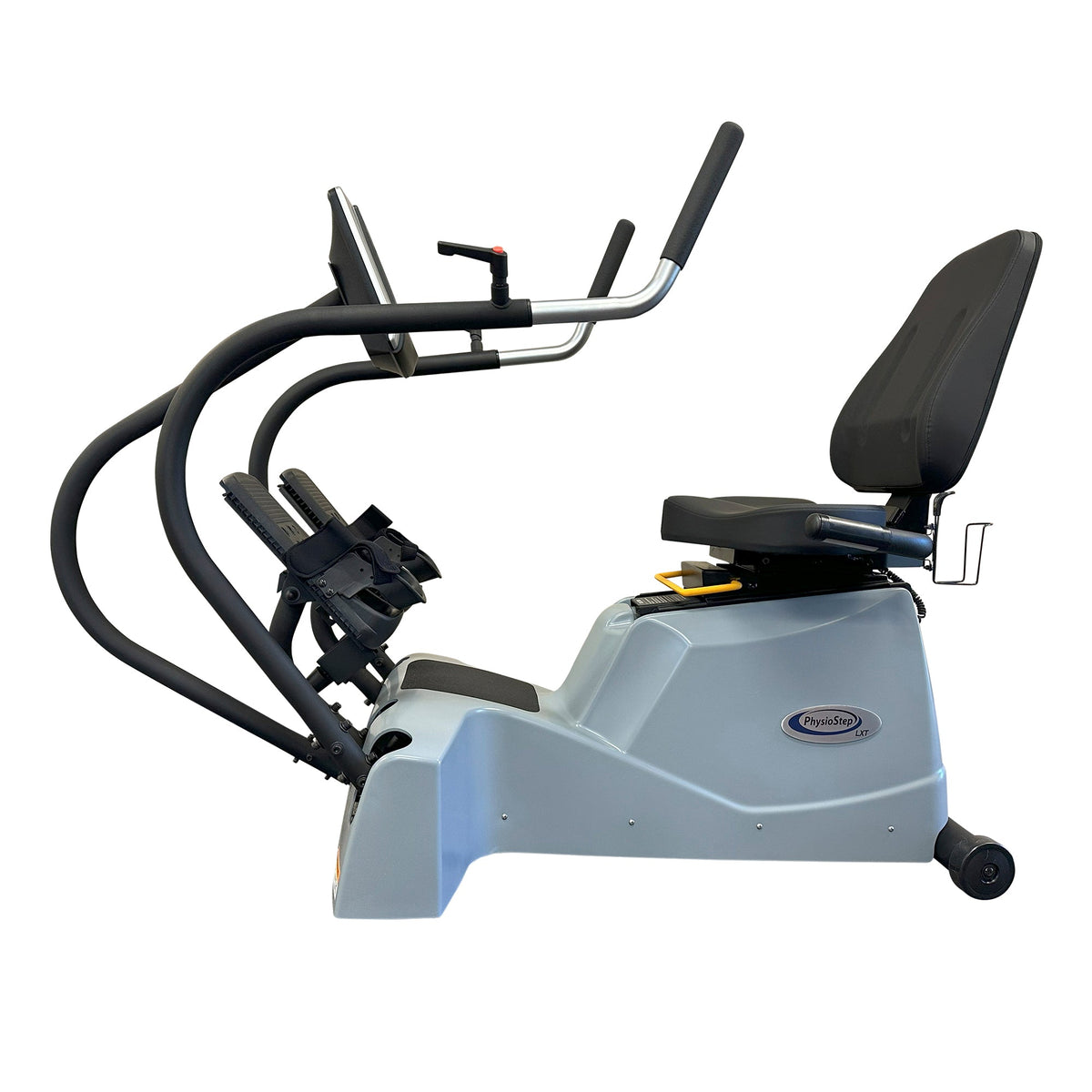

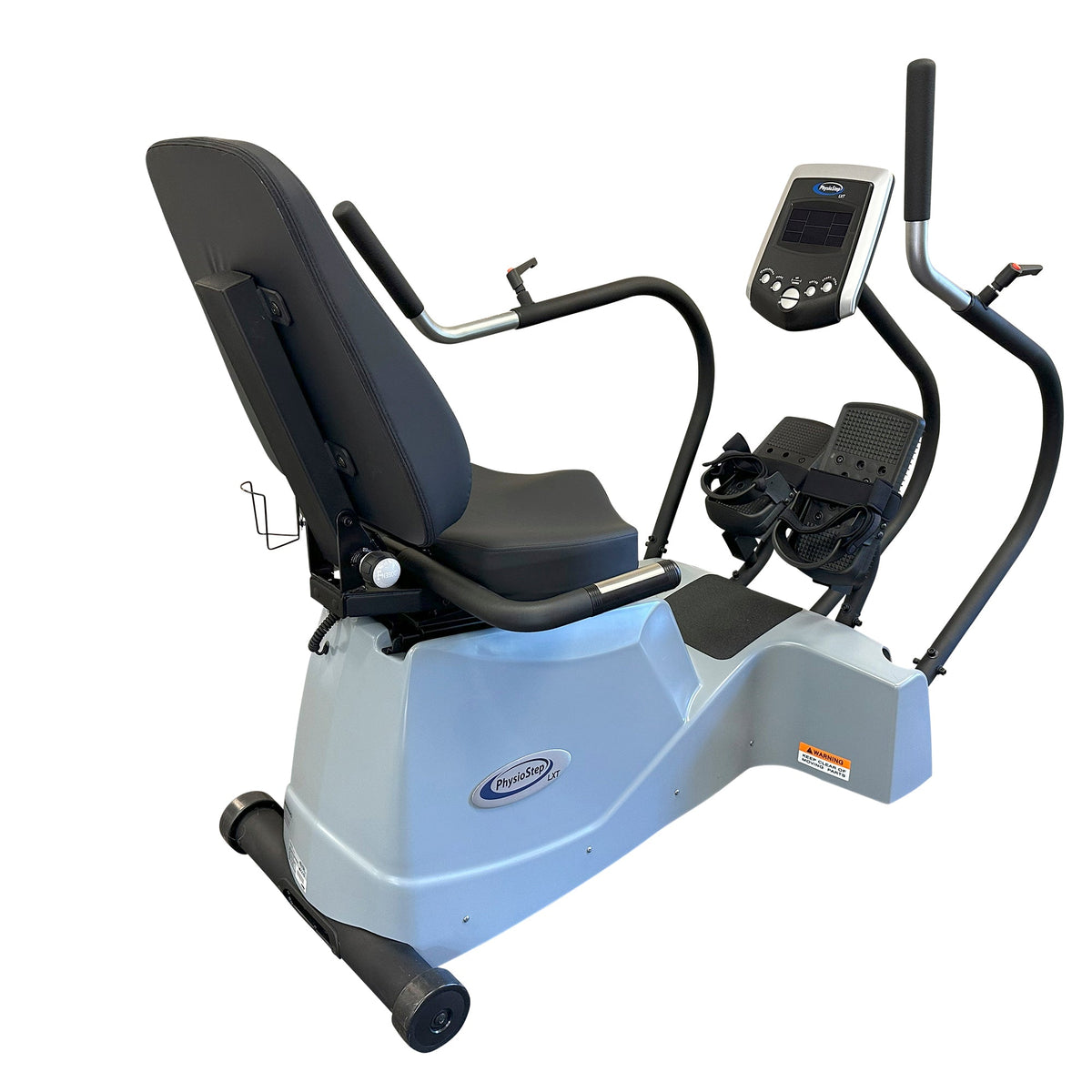

The HCI PhysioStep LXT-500 is a fixed-seat recumbent linear stepper with coordinated arm and leg movement. Its 20-inch memory-foam seat adjusts forward and back, and the backrest offers three recline positions.

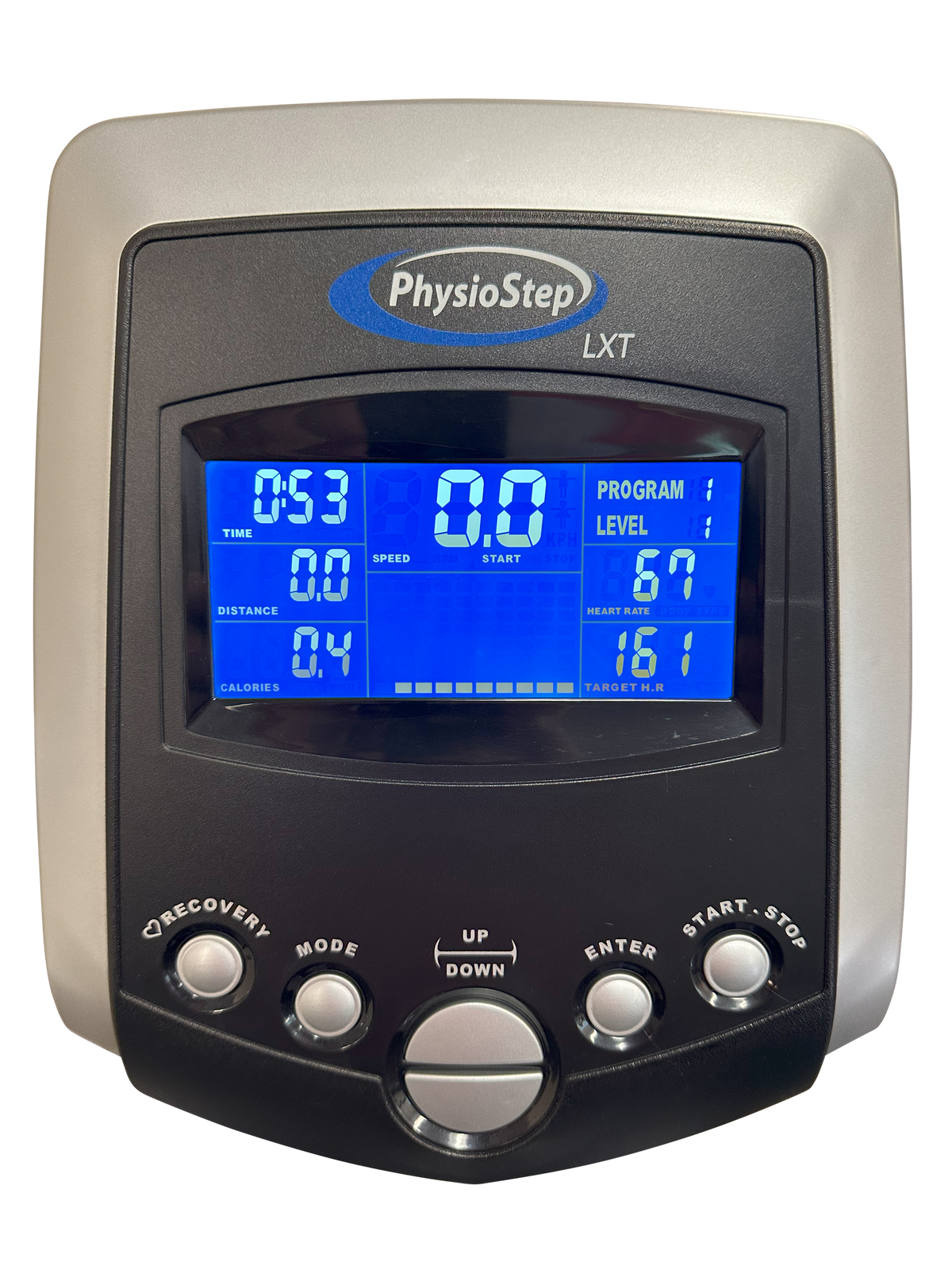

A 7-inch LCD display provides 16 resistance levels and 17 programs. This model supports users up to 450 lb and has a fixed, non-swiveling seat.
Features
Specifications
- Model
- LXT-500
- Movement
- Linear stepping
- Seat
- Fixed, non-swiveling
- Max User Weight
- 450 lb
- Resistance
- 16 levels
- Display
- 7-inch LCD
- Programs
- 17
- Dimensions
- 60 L × 30 W × 40 H in
- User Height
- 4 ft 6 in–6 ft 4 in
- Seat Width
- 20 in
- Seat Padding
- 4-inch memory foam
- Backrest
- 3 recline positions
- Step Length
- 1–12 in
- Net Weight
- 225 lb
- Power
- AC 110–220 V, 50/60 Hz
- Included

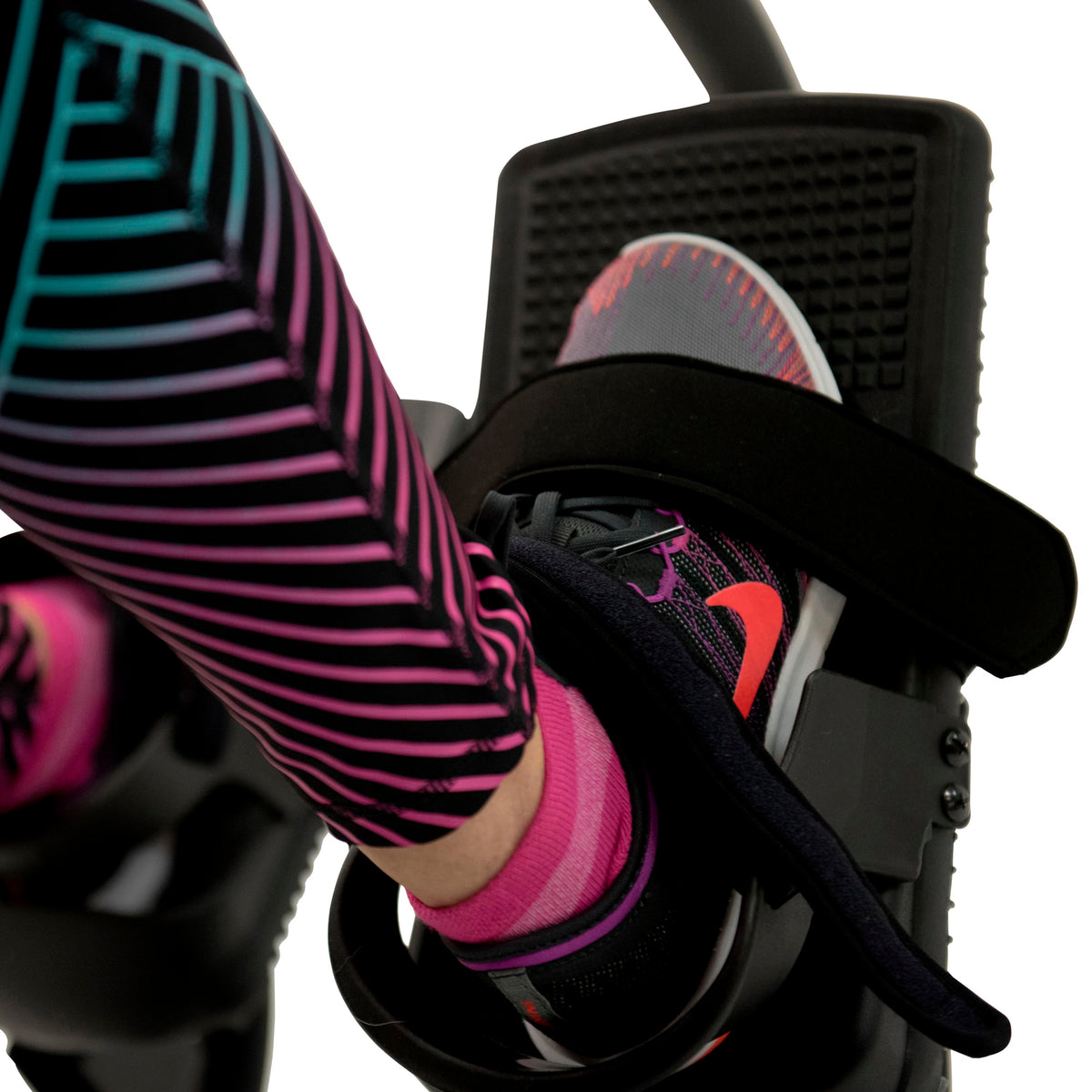

- Foot straps, ankle straps, AC adapter and assembly tools
Delivery
Standard delivery terms vary by product and destination.
The available delivery method and any applicable shipping, special-access, remote-location, inside-delivery, installation or white-glove charge will be shown or confirmed by SimWellness before the order is released.
Check access, clearances and any utility requirements . If you are unsure, send us the details and we’ll help you check.
Warranty
Returns
Return terms vary by product.
Contact SimWellness before sending anything back so we can confirm the applicable terms and arrange the correct return process.
We’d rather help you check the practical details . If you are unsure about dimensions, access or power, send them over.
Compare HCI seated training equipment
Compare the movement, seat and access features to choose your equipment.
Current model
HCI PhysioStep LXT-500 Fixed-Seat Recumbent Stepper$3,495.00
- Motion
- Linear stepping
- Seat
- Fixed, non-swiveling
- Capacity
- 450 lb
- Access
- Fixed seat
HCI PhysioStep LXT-700 Recumbent Linear Stepper$3,695.00
- Motion
- Linear stepping
- Seat
- 360° swivel
- Capacity
- 450 lb
- Access
- Swivel seat
HCI PhysioStep MDX Recumbent Elliptical Cross Trainer$4,295.00
- Motion
- Seated elliptical
- Seat
- 360° swivel
- Capacity
- 500 lb
- Access
- Swivel seat
HCI PhysioMax TBT-1000 Total Body ErgometerFrom $5,595.00
- Motion
- Independent arm and leg cycling
- Seat
- Swiveling and removable
- Capacity
- 500 lb
- Access
- Removable seat for wheelchair access
Want to see the rest? View the full range
A few practical things worth checking.
Does the LXT-500 seat swivel?
No. This is the fixed-seat LXT-500. The seat adjusts forward and back and the backrest reclines, but the seat does not swivel.
How does it differ from the LXT-700?
The LXT-500 has a fixed seat, 7-inch LCD, 16 resistance levels and 17 programs. The LXT-700 adds a swivel seat, 9-inch LCD, 32 resistance levels, 20 programs and USB workout export.
What is the standard user weight capacity?
The standard LXT-500 supports users up to 450 lb. This listing does not include an optional higher-capacity configuration.
Does it need a power outlet?
Yes. The listed input is AC 110–220 V, 50/60 Hz. Allow room for the power cord and a clear entry path.
How should I plan delivery and setup?
Check the final room, doorways, hallway turns and the route from the delivery point to the equipment location. Contact SimWellness to confirm freight service, any unloading or inside-delivery arrangements and the current delivery estimate before ordering.
What warranty is included?
The listed coverage is lifetime on the main frame, three years on parts and one year on labor, subject to the written warranty terms. Contact SimWellness for service assistance.
