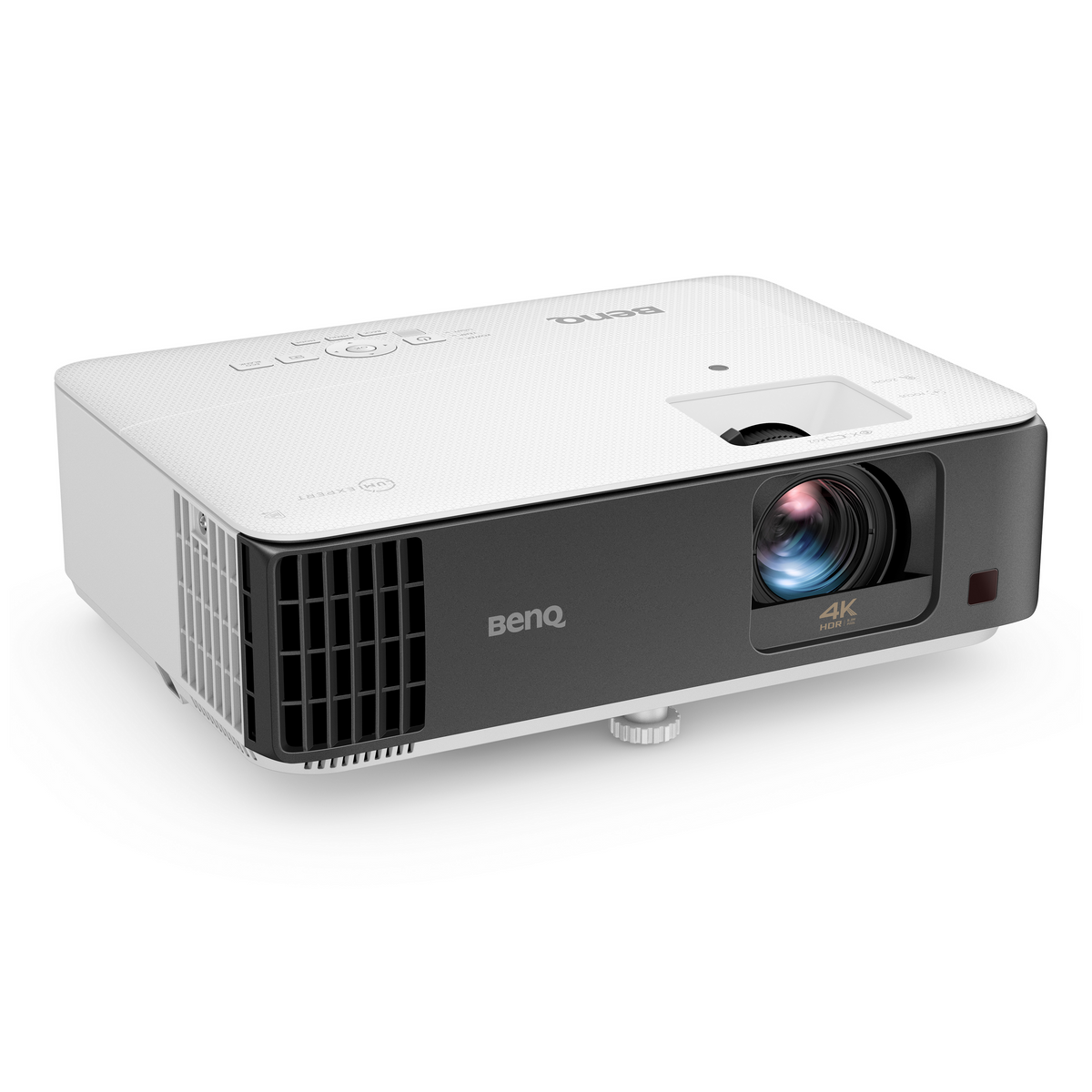

BenQ TK700ST 4K short-throw projector for a golf simulator bay
← Simulator Academy

Golf Simulator Projector Throw Ratio: What Your Room Can Actually Take

Throw ratio connects image width to the projector’s lens position. Measure the planned lens-to-screen distance—not the room’s full depth—and then check shadows, the swing envelope and mounting clearances.

Content reviewed 2 November 2026

In this guide
  1. The two useful calculations
  2. Example mounting distances
  3. A long room does not require standard throw
  4. Fixed lenses, zoom and interchangeable lenses
  5. Before drilling a mount

The two useful calculations

Lens-to-screen distance = image width × throw ratio.

Required throw ratio = planned lens-to-screen distance ÷ image width.

Use the same units on both sides and measure the actual image width rather than the screen’s diagonal. The manufacturer’s specification may assume a particular aspect ratio; check the usable image size for your chosen golf format.

Example mounting distances

Ratio 10 ft image width 12 ft image width 14 ft image width
0.5:1 5 ft 6 ft 7 ft
0.6:1 6 ft 7.2 ft 8.4 ft
0.8:1 8 ft 9.6 ft 11.2 ft
1.0:1 10 ft 12 ft 14 ft
1.2:1 12 ft 14.4 ft 16.8 ft
1.5:1 15 ft 18 ft 21 ft

A long room does not require standard throw

In a 20 ft-deep room you can still mount a 0.5:1 projector 6 ft from a 12 ft image, if that location is safe and within its installation limits. Room depth limits the available positions; it does not dictate which lens class you must buy. Conversely, a mathematical fit can still fail because of player shadows, a swing hazard or vertical offset.

Fixed lenses, zoom and interchangeable lenses

A zoom lens provides a throw-ratio interval; verify both ends at your intended image width. A fixed-ratio lens has a narrower placement choice. A body sold without a lens has no complete mounting specification until the compatible lens is selected. Digital keystone correction is not a substitute for the right lens or safe placement.

Before drilling a mount

  • Mark the screen image plane and allow the screen’s required rear clearance.
  • Mark the real hitting position and test every intended player’s swing.
  • Locate the lens and projector body, accounting for the whole chassis and mount.
  • Check zoom, offset/lens shift, permitted orientation, cooling and service access.
  • Confirm the selected model/lens price and protect cables and equipment from balls.

Enter image width and the actual planned lens position.
