NVISAGE sells three launch monitors and they are not variations on a theme. Two mount overhead and one stands on the floor; the cheapest needs marked balls and the dearest reads any ball at 6,000 frames per second. Your ceiling height narrows the choice faster than your budget does.
Side-by-Side Comparison
Scroll across to compare all details.
| Feature | N1 | N2 | NEO-E |
|---|---|---|---|
| Price | $4,995 | $11,000 | $5,500 |
| Mounting | Overhead — 9–10 ft above tee | Overhead — 9.2–9.8 ft | Ground-mounted, beside the tee |
| Tracking | Dual 2,000 fps cameras | Triple camera array + Dimple Optix, 6,000 fps | Triple-camera optical |
| Data points | 8 | 27 | Ball and club data |
| Hitting zone | 24″ × 20″ | 32″ × 24″ | Not published |
| Ball markings | Marked balls required | Any ball — none required | None required |
| Club stickers | Not published | Optional, for impact-point data | Required for club data |
| Response time | Not published | 0.2 seconds | Not published |
| Handedness | Not published | Auto-detected, left and right | Not published |
| Indoor / outdoor | Indoor | Indoor | Both — IP65 rated |
| Connectivity | Ethernet | Gigabit Ethernet, Wi-Fi | Not published |
| Included software | GSPro, E6 Connect | MURLIE + MURLIE-X, no subscription | Murlie, no subscription |
| Third-party | GSPro, E6 Connect | GSPro, E6 Connect, Creative Golf | GSPro, E6 Connect |
| OS | Windows 10 (64-bit) | Not published | Windows 11 (64-bit), RTX 30+ |
The short version: measure your ceiling first. Under 9 ft and the NEO-E is your only NVISAGE. Between 9 and 10 ft, the N1 and N2 both fit and the decision becomes budget against data. The N2 is more than twice the price of the N1 and the gap buys frame rate, data points and the end of marking your golf balls.
Overhead Launch Monitor · Entry
NVISAGE N1
$4,995
Best for: A first overhead room on a controlled budget, where you are happy to mark your practice balls.
- Overhead mount, 9–10 ft above the tee, 2 ft forward
- Dual 2,000 fps high-speed cameras, PhysX 6D engine
- 8 shot metrics — specification lists marked balls as required
- 24″ × 20″ hitting zone
- GSPro and E6 Connect, Ethernet to a Windows 10 PC
Overhead Launch Monitor · Flagship

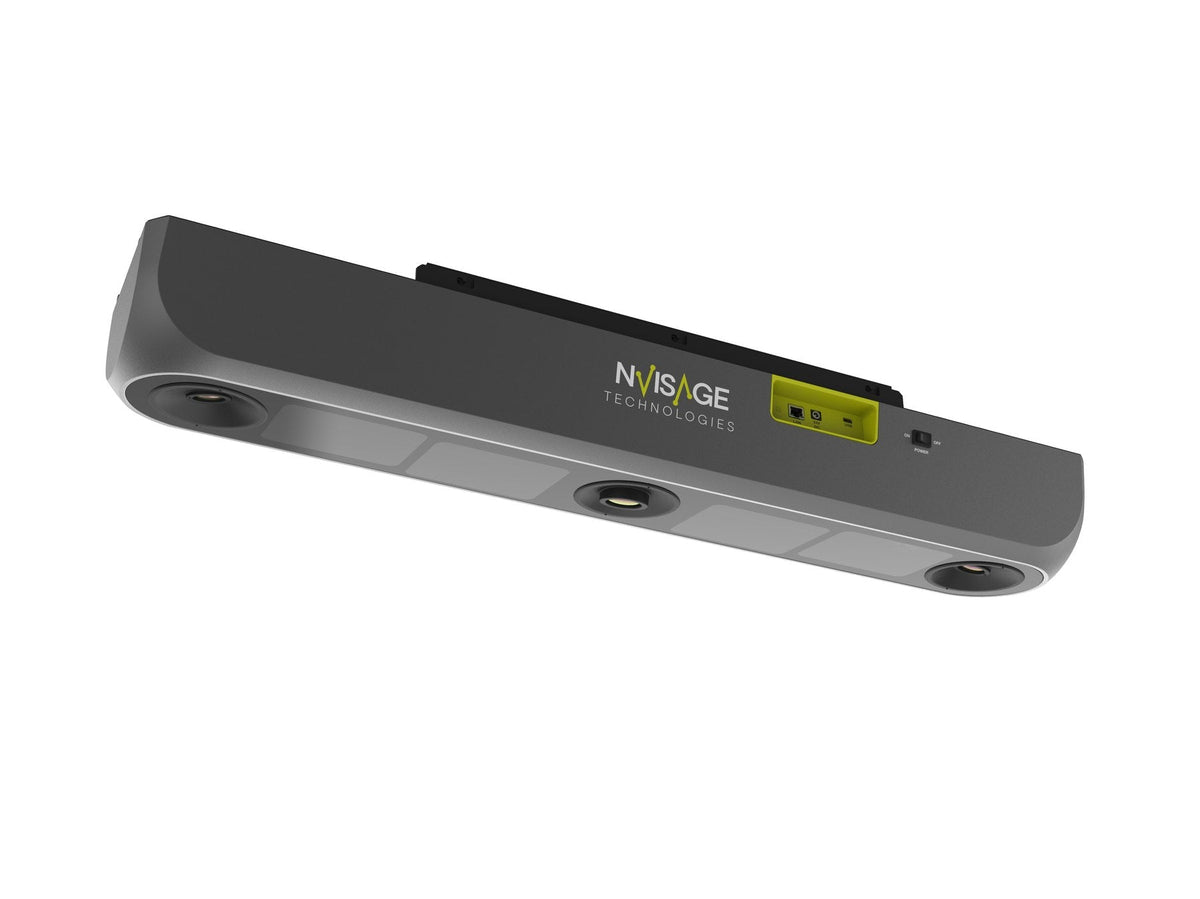

NVISAGE N2
$11,000
Best for: The overhead room you do not want to rebuild later. Triple the frame rate of the N1 and no ball prep at all.
- Triple camera array with Dimple Optix at 6,000 fps
- 27 data points, 0.2 second response
- Any ball, no markings; club stickers optional for impact point
- Larger 32″ × 24″ hitting zone, left and right detected automatically
- MURLIE and MURLIE-X included, no subscription, no integration fees
Ground-Mounted · Indoor & Outdoor
NVISAGE NEO-E
$5,500
Best for: Low ceilings, rented rooms, garages — anywhere you cannot or will not drill overhead. The only NVISAGE that also goes outside.
- Ground-mounted beside the tee, no ceiling work
- Triple-camera optical tracking, standard balls
- IP65 rated — specified for indoor and outdoor use
- Club data available with the included club stickers
- Murlie included, no subscription; GSPro and E6 Connect
How to Choose Between Them
Ceiling height is the first filter and it is not negotiable. The N1 wants 9–10 ft above the tee. The N2 is specified to a narrower band of 9.2–9.8 ft: below that it cannot see the full ball flight, above it accuracy drops off. A tall room is not a problem — a drop bracket brings the unit into the window — but a short one is. The NEO-E sidesteps the question entirely by standing on the floor, which is also why it is the one to fit in a rented space where drilling the ceiling is not an option.
Frame rate
N1: dual cameras at 2,000 fps. N2: triple array with Dimple Optix at 6,000 fps. Three times the capture rate, and the N2 returns a shot in 0.2 seconds.
Ball preparation
The N1's specification requires marked balls. The N2 and NEO-E read any standard ball. Over a winter of practice that difference is felt more often than a spec sheet suggests.
Hitting zone
24″ × 20″ on the N1 against 32″ × 24″ on the N2. The larger area is more forgiving of where you tee up and of a mat that has moved.
Data depth
8 data points on the N1, 27 on the N2. The NEO-E gives ball data as standard and club data once the included stickers are fitted.
Running costs
None of the three carries a subscription, and NVISAGE charges no integration fee for GSPro, E6 Connect or Creative Golf. Worth weighing against monitors that bill annually.
Where it lives
N1 and N2 are indoor overhead units. The NEO-E is IP65 rated and specified for indoor and outdoor use — the only one you can take to a range bay.
Our Verdict
If your ceiling allows an overhead mount and the budget reaches $11,000, the N2 is the one to buy — 6,000 fps, 27 data points and no ball marking are real daily improvements rather than spec-sheet padding. At $4,995 the N1 is the value pick and a genuine overhead monitor, provided you accept marking your balls. Choose the NEO-E for a reason rather than a budget: a low ceiling, a room you cannot drill, or a need to use it outdoors. It is not the compromise option, it is the answer to a different question.
Frequently Asked Questions
Do I need a 10ft ceiling for the N1 or N2?
Close to it. The N1 mounts 9–10 ft above the tee. The N2 is tighter still, 9.2–9.8 ft, because above 9.8 ft its accuracy falls away. If your ceiling is higher than that you can still fit either, but plan for a drop or extension bracket. If your ceiling is under 9 ft, look at the ground-mounted NEO-E instead.
Which NVISAGE works without marking the ball?
The N2 and the NEO-E both read a standard golf ball with no markings. The N1's specification lists marked balls as a requirement for its shot data.
Can I use a NVISAGE outdoors?
Only the NEO-E. It is IP65 rated for water and dust and is specified for indoor and outdoor use. The N1 and N2 are overhead indoor units.
Is there a subscription?
No. The N2 includes MURLIE and MURLIE-X outright, and the NEO-E includes Murlie. NVISAGE also charges no integration fee for third-party software such as GSPro, E6 Connect or Creative Golf.
What is the real difference between the N1 and the N2?
Frame rate and data. The N1 uses dual 2,000 fps cameras and reports 8 data points; the N2 uses a triple camera array with Dimple Optix at 6,000 fps and reports 27, with a 0.2 second response. The N2's hitting zone is also larger at 32 × 24 in versus 24 × 20 in, and it detects left- and right-handed players automatically.
Does the NEO-E need club stickers?
For club data, yes — the NEO-E's club data is available with the included club stickers. Ball data does not need them.
