Key Features
- 4K IPS display with anti-glare glass and up to 50-point touch.
- EZWrite 6 whiteboarding and InstaShare 2 wireless sharing.
- Google EDLA-certified Android 15 with NFC sign-in.
- Eight-microphone array and two 25W speakers.
Technical Specifications
| Screen | 75-inch IPS, 3840 × 2160, 16:9 |
|---|---|
| Brightness | 450 nits typical |
| Touch | Up to 50 simultaneous touch points |
| System | Android 15 (EDLA), 8GB RAM / 128GB storage |
| USB-C power delivery | 65W |
| Dimensions (W × H × D) | 1709.4 × 1026.8 × 98.6 mm |
| Net weight | 40.6 kg (89.5 lb) |
| VESA mounting | 800 × 400 mm |
| Power | AC 100–240V, 50/60Hz |
| Warranty | Three-year standard warranty |
Compatibility & Included Equipment
In The Box
Wall mount, two pens, remote control, HDMI cable, USB touch cable and USB-C cable. Installation is outside the equipment package.
Compatible Devices & Software
HDMI or DisplayPort carries the picture; USB carries touch input. A compatible external computer and software are separate components. The display is not an impact screen.
View BenQ’s full specifications
Built-in software includes EZWrite 6 whiteboarding and InstaShare 2 wireless sharing. Google EDLA-certified Android 15 supports the panel’s apps; Windows-only simulation software requires a compatible external Windows computer.
Find Your Fit
Display Size Guide
The RM7505 has a 75-inch diagonal screen. Its physical panel dimensions are shown below.
Panel weight: 40.6 kg (89.5 lb). VESA pattern: 800 × 400 mm. These dimensions describe the panel; they do not include installation clearances or an external stand.
Where It Fits

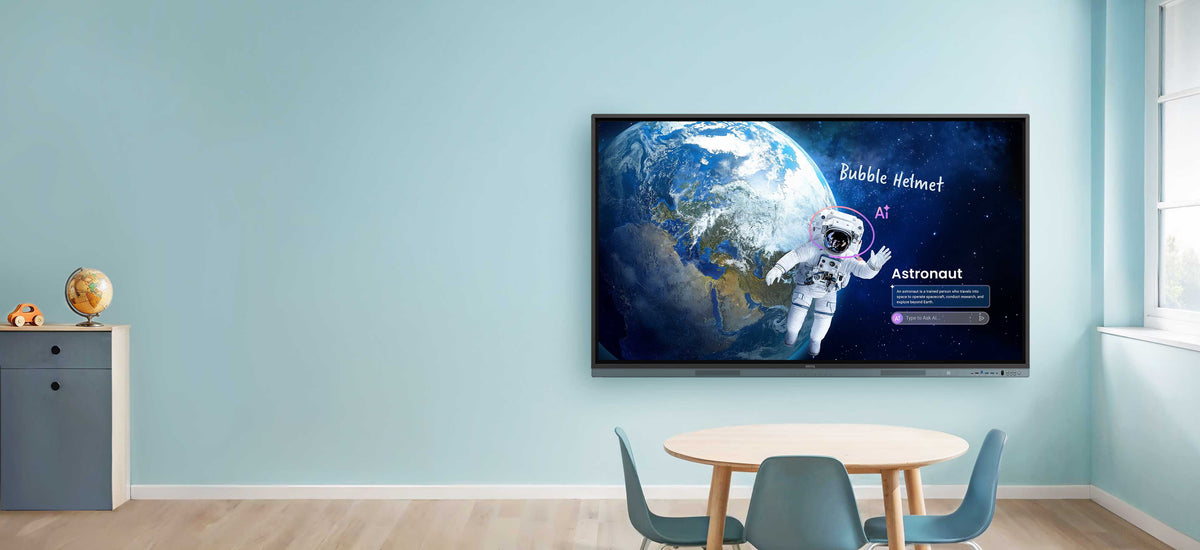

- Classrooms and training spaces with shared whiteboarding.
- Meeting rooms for presentations and on-screen annotation.
- Coaching and content review with a connected computer.
Installation & Use
- Wall mount supplied; installation is outside the equipment package.
- AC 100–240V, 50/60Hz power.
- An interactive flat panel, not a golf-ball impact screen.
Frequently Asked Questions
Does the RM7505 include a camera?
No. It has an eight-microphone array and built-in speakers; an external camera is a separate component.
Is a wall mount included?
Yes. The supplied equipment includes a wall mount. The 75-inch panel uses a 800 × 400 mm VESA pattern and weighs 40.6 kg (89.5 lb). Installation is outside the equipment package.
Can I connect a computer and use touch?
Yes. Connect the image through HDMI or DisplayPort and connect USB for touch input. USB-C also supports compatible connected devices, with up to 65W power delivery.
Can this replace a golf impact screen?
No. This is an interactive flat-panel display for presentations, collaboration and reviewing content. Golf balls must not be struck at the panel.
