In this guide
A commercial bay is a different projector problem to a home bay. The room stays lit, the screen is bigger, the unit runs for hours a day, and a dark or failed bay is lost revenue rather than a lost evening. That pushes you toward laser light sources and brightness figures that look absurd next to a home build.
Side-by-Side Comparison
Scroll across to compare all details.
Start with ambient light, not bay size
The mistake that costs venues money is sizing brightness to the screen rather than to the room. A 4,000-lumen projector that looks excellent in a blacked-out basement washes out completely in a room with windows along one wall, and no amount of screen gain recovers it.
Work backwards from how the room is actually used. If you are running leagues on winter evenings with the lights down, the lower end of this range is honest. If there is a bar, daylight, or a viewing area that needs to stay lit while people play, you are in five figures.
Controlled rooms: 2,600 to 8,500 lumens
Short-throw · controlled light

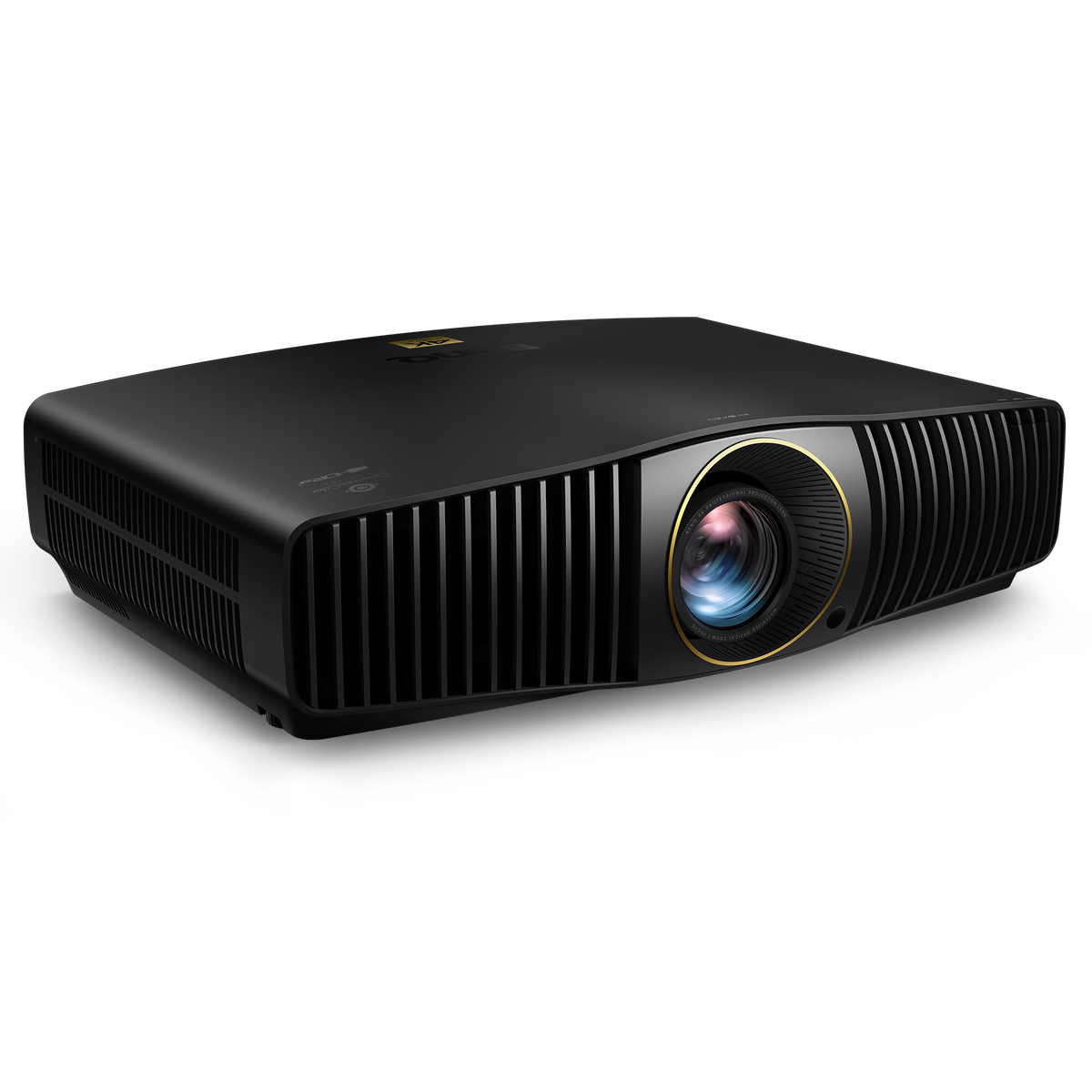

BenQ BR9708 4K 2600 Lumen Laser Short-Throw Commercial Venue Projector
$6,499
Short-throw 4K for bays where you can manage the lighting and cannot give up floor depth. The most affordable genuinely commercial-rated unit here.
View BR9708
Entry large-venue
BenQ LK935 4K 5500 Lumen Laser Large Venue Projector
$4,499
4K at 5,500 lumens, standard throw. A sensible first step up for a venue that dims the room during play but needs more headroom than a home projector offers.
View LK935
Ultra short-throw · 4K
Optoma ZK810TST 4K 8500 Lumen Laser Ultra Short-Throw Projector
$15,439
8,500 lumens from an ultra short-throw chassis, so the unit sits close to the screen and out of the swing path. The specialist choice when ceiling depth is the constraint.
View ZK810TSTOpen venues: 10,000 lumens and up
Past roughly 10,000 lumens you are buying for rooms that never go dark. These are installed fixtures with lens options and professional mounting, not something you reposition between sessions.
Value at 10,000 lumens
BenQ LU9800 WUXGA 10000 Lumen Laser Large Venue Projector
$13,999
WUXGA at 10,000 lumens. The cheapest way onto this tier, and the right answer when the room is bright but the budget is not unlimited.
View LU9800
DuraCore workhorse
Optoma ZU1100 WUXGA 11500 Lumen DuraCore Laser Projector
$17,058
11,500 lumens with Optoma’s DuraCore laser engine, built for continuous operation. A common multi-bay standard because spares and lenses carry across the range.
View ZU1100
4K at scale
Optoma ZK1320 4K 13500 Lumen Laser Large Venue Projector
$26,998
13,500 lumens in true 4K. For venues where image quality is part of the product — premium clubs, fitting studios, brand experiences.
View ZK1320
Maximum output
Optoma ZU1900 WUXGA 19000 Lumen Laser Large Venue Projector
$39,688
19,000 lumens, the brightest unit we stock. Specified for genuinely open spaces: atriums, event builds, and ranges with glazing on two sides.
View ZU1900Which One Should You Buy?
Dimmable room, tight budget
$4,499
4K, laser, no bulb changes. Enough for a controlled bay without stepping into large-venue pricing.
Shallow ceiling
$15,439
Ultra short-throw keeps the unit clear of the swing path when depth is the limiting factor.
Multi-bay standard
$17,058
Buy the same unit for every bay so lenses, mounts and spares interchange.
Or buy the whole system
If you would rather hold one supplier accountable for tracking, screen, software and install, HD Golf builds complete commercial systems. Both are quoted rather than listed, because room dimensions drive the specification.
Complete system · 4:3
HD Golf 4:3 Golf Simulator for Home & Commercial Use
$48,350
The narrowest HD Golf cabinet, so it fits rooms the widescreen builds cannot. Two years parts and labour.
View Golf
Multi-sport venue
HD Golf SportSuite Multi-Sport Golf Simulator
$60,000
Seventeen sports and activities on the same cabinet — the option when golf alone will not fill the room midweek.
View GolfFrequently asked questions
How many lumens does a commercial golf simulator need?
It depends on ambient light, not bay count. A darkened residential bay is served by 3,000–4,000 lumens. A commercial room with windows, overhead lighting or a bar area needs considerably more, which is why the units on this page start at 2,600 for controlled short-throw rooms and run to 19,000 for open venues that stay lit during play.
Is 4K worth it over WUXGA for a commercial bay?
For a venue where players stand close to a large screen, resolution is visible. WUXGA (1920×1200) is the workhorse format for large-venue projection and costs less per lumen, which is why the brightest units here are WUXGA rather than 4K. If image detail is part of what you are selling, the 4K options are the ZK1120, ZK1320 and ZK810TST.
Do I need one projector per bay?
Yes. Each bay needs its own projector aligned to its own screen. Multi-bay facilities buy the same model repeatedly so that spares, lenses and mounts are interchangeable, which matters more than squeezing the last few hundred dollars out of a single unit.
What about lamp replacement in a commercial setting?
Every projector on this page is laser rather than lamp-based. That is the single biggest reason commercial rooms pay more up front: no bulb changes, no mid-season brightness fade, and no closing a revenue-generating bay for maintenance.
Can I buy the whole simulator instead of sourcing parts?
Yes. HD Golf builds complete commercial systems with the projector, tracking, screen and software integrated and professionally installed. That route trades flexibility for a single point of accountability, which many venues prefer.
Building a home bay instead? Start with our guide to golf simulator projectors for home rooms, or work out your mounting distance first with throw ratio explained.
